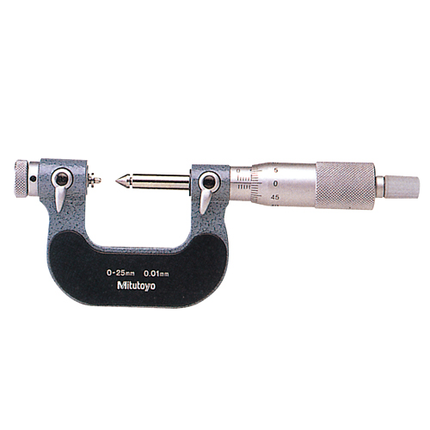

MITUTOYO Screw Thread Micrometers - Series 126-Interchangeable Anvil-Spindle Tip Type

Description

MITUTOYO  Screw Thread Micrometers - Series 126-Interchangeable Anvil-Spindle Tip Type

  • FEATURES
    • IP65 water/dust protection(Series 326).
    • 60 degree or 55 degree V-anvil andconicalspindle(interchangeable)are optional,which are made of high-grade steel,hardened and precision ground.
    • With Ratchet Stop for constant force.
    • With SPC output (Series 326)
    • With a standard bar except 0-25mm
      0-1 in model
    • Suplied in fitted plastic case.

    Technical Data

    Resolution*:0.001mm or .00005"/0.001mm
    Graduation**:0.01mm or .001"
    Spindle feed error: 3µm/.00012”
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 years under normal use
    Dust/Water protection level*: IP65
    *Digital models **Analog models

    Function of Digital Model
    Zero-setting, Data hold, Data output, 2 Presets, Function lock.
    inch/mm conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error

    Optional Accessories

    05CZA662: SPC cable with data switch (1m/40”)*
    05CZA663: SPC cable with data switch (2m/80”)*
    *Only for digital models



      Order No Range Accuracy Mass Remarks
      126-125 0-25mm ±4µm 240g -
      126-126 25-50mm ±4µm 290g -
























      Product form

      MITUTOYO  Screw Thread Micrometers - Series 126-Interchangeable Anvil-Spindle Tip Type FEATURES IP65 water/dust protection(Series 326). 60 degree or 55 degree... Read more

      SKU: 126-125

      $355.26 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
        Need a bulk or multi-brand quotation?

        Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
        Korean brands at ProSource MRO — operated by the same team.

        Request a Bulk Quote →

        Description

        MITUTOYO  Screw Thread Micrometers - Series 126-Interchangeable Anvil-Spindle Tip Type

        • FEATURES
          • IP65 water/dust protection(Series 326).
          • 60 degree or 55 degree V-anvil andconicalspindle(interchangeable)are optional,which are made of high-grade steel,hardened and precision ground.
          • With Ratchet Stop for constant force.
          • With SPC output (Series 326)
          • With a standard bar except 0-25mm
            0-1 in model
          • Suplied in fitted plastic case.

          Technical Data

          Resolution*:0.001mm or .00005"/0.001mm
          Graduation**:0.01mm or .001"
          Spindle feed error: 3µm/.00012”
          Display*: LCD
          Battery*: SR44 (1 pc.), 938882
          Battery life*: Approx. 1.2 years under normal use
          Dust/Water protection level*: IP65
          *Digital models **Analog models

          Function of Digital Model
          Zero-setting, Data hold, Data output, 2 Presets, Function lock.
          inch/mm conversion (inch/mm models)
          Alarm: Low voltage, Counting value composition error

          Optional Accessories

          05CZA662: SPC cable with data switch (1m/40”)*
          05CZA663: SPC cable with data switch (2m/80”)*
          *Only for digital models



            Order No Range Accuracy Mass Remarks
            126-125 0-25mm ±4µm 240g -
            126-126 25-50mm ±4µm 290g -
