MITUTOYO Spline Micrometers - Series 111

Description

Description

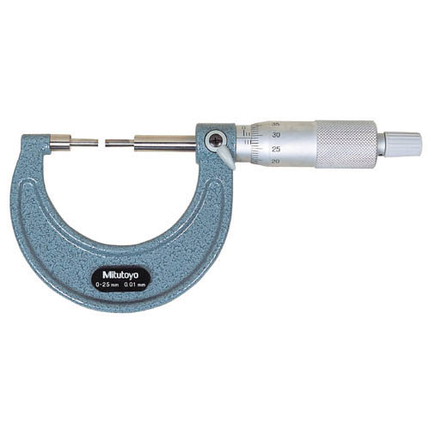

MITUTOYO  Spline Micrometers - Series 111

  • FEATURES
    • IP65 water/dust protection (Series 331).
    • The anvil and spindle have a small diameter for measuring splined shafts,slots, and keyways.
    • With Ratchet Stop for constant force.
    • With SPC output (Series 331).
    • With a standard bar except 0-25mm and 0-1” model.
    • Supplied in fitted plastic case.

    Technical Data

    Accuracy: Refer to the list of specifications.
    Resolution*: 0.001mm or .00005"/0.001mm
    Graduation**:0.01mm,.001" or .0001"
    Flatness: 0.3µm/.000012”
    Parallelism:(2+R/100)µm,R=max. range (mm)
    [.00008” + .00004” (L/4”)]
    L = max. range (inch)
    Measuring faces: Carbide tipped
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 years under normal use
    Dust/Water protection level*: IP65
    *Digital models **Analog models

    Function of Digital Model

    Origin-set, Zero-setting, Data hold, Data output, inch/mm
    conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error

    Optional Accessories for Digital Model

    05CZA662: SPC cable with data switch (1m/40”)
    05CZA663: SPC cable with data switch (2m/80”)
    Order No Range Accuracy Remarks Mass Gen Info
    111-215 0-25mm ±3µm Type B 205g -
    111-115 0-25mm ±3µm Type A 205g Spline (DIA).3mm
    111-116 25-50mm ±3µm Type A 205g Spline (DIA).3mm

    Product form

    MITUTOYO  Spline Micrometers - Series 111 FEATURES IP65 water/dust protection (Series 331). The anvil and spindle have a small diameter... Read more

    01. Spline Micrometers 111-215 (0-25/0.01) B

    01. Spline Micrometers 111-215 (0-25/0.01) B 02. Spline Micrometers 111-115 (0-25/0.01) A 03. Spline Micrometers 111-116 (25-50/0.01) A

    SKU: 111-215
    Barcode: 4946368009179

    $176.36 Excl. VAT

      • Quick delivery worldwide
      • Satisfied or refunded
      • Secure payments Paypal
