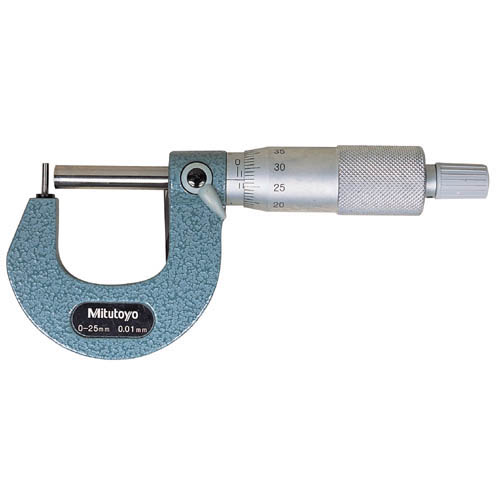

MITUTOYO Tube Micrometers - Series 115

Description

MITUTOYO  Tube Micrometers - Series 115

  • Series 115
    FEATURES
    • Designed to measure the wall thickness of various tubing.
    • The Tube Micrometers have two combinations of measuring faces (carbidetipped): spherical-flat type, and spherical type.
    • Cylindrical anvils (perpendicular) are also available.
    • With Ratchet Stop for constant force.
    • With SPC output (Series 395).
    • With digit counter (Series 295).
    • With a standard bar except 0-25mm and 0-1” model.
    • Supplied in fitted plastic case.

    Technical Data

    Accuracy: Refer to the list of specifications.
    (excluding quantizing error for digital models)
    Resolution*: 0.001mm or .00005"/0.001mm
    Graduation**: 0.01mm, .001" or .0001"
    Flatness: 0.6ìm / .000024”
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 years under normal use
    Dust/Water protection level*: IP65
    *Digital models **Analog models
    Function of Digital Model
    Origin-set, Zero-setting, Data hold, Data output, inch/mm
    conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error
    Optional Accessories for Digital Model
    05CZA662: SPC cable with data switch (1m / 40”)
    05CZA663: SPC cable with data switch (2m / 80”)



    Order Number Range Accuracy Remarks Descript Mass
    115-302 0-25mm ±3µm Type A - 180g
    115-308 0-25mm ±3µm Type B Anvil type:C 180g

    Product form

    MITUTOYO  Tube Micrometers - Series 115 Series 115 FEATURES Designed to measure the wall thickness of various tubing. The Tube... Read more

    SKU: 115-302

    $133.54 Excl. VAT

      • Ships within 5–10 business days
      • Ships from South Korea
      • Export packing available
      • Worldwide shipping
      • Secure payments Paypal
      Need a bulk or multi-brand quotation?

      Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
      Korean brands at ProSource MRO — operated by the same team.

      Request a Bulk Quote →

      Description

      MITUTOYO  Tube Micrometers - Series 115

      • Series 115
        FEATURES
        • Designed to measure the wall thickness of various tubing.
        • The Tube Micrometers have two combinations of measuring faces (carbidetipped): spherical-flat type, and spherical type.
        • Cylindrical anvils (perpendicular) are also available.
        • With Ratchet Stop for constant force.
        • With SPC output (Series 395).
        • With digit counter (Series 295).
        • With a standard bar except 0-25mm and 0-1” model.
        • Supplied in fitted plastic case.

        Technical Data

        Accuracy: Refer to the list of specifications.
        (excluding quantizing error for digital models)
        Resolution*: 0.001mm or .00005"/0.001mm
        Graduation**: 0.01mm, .001" or .0001"
        Flatness: 0.6ìm / .000024”
        Display*: LCD
        Battery*: SR44 (1 pc.), 938882
        Battery life*: Approx. 1.2 years under normal use
        Dust/Water protection level*: IP65
        *Digital models **Analog models
        Function of Digital Model
        Origin-set, Zero-setting, Data hold, Data output, inch/mm
        conversion (inch/mm models)
        Alarm: Low voltage, Counting value composition error
        Optional Accessories for Digital Model
        05CZA662: SPC cable with data switch (1m / 40”)
        05CZA663: SPC cable with data switch (2m / 80”)



        Order Number Range Accuracy Remarks Descript Mass
        115-302 0-25mm ±3µm Type A - 180g
        115-308 0-25mm ±3µm Type B Anvil type:C 180g
