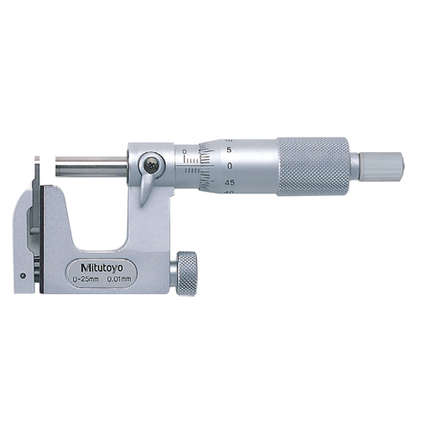

MITUTOYO Uni-Mike - Series 117 - Interchangeable Anvil Type

Description

MITUTOYO  Uni-Mike - Series  117 - Interchangeable Anvil Type

    • EATURES
      • IP65 water/dust protection (Series 317)
      • Measures tubing thickness, shoulderedge distance, rivet head height,
        etc. with interchangeable anvils (flat anvil, rod anvil,V-anvil).
      • Supplied with Flat Anvil (201216) and Rod Anvil:
        ø3mm/.118” rod anvil (201217) for 0-25mm/0-1” models, ø5mm/.197”
        (201379) for 25-50mm / 1-2” model.
      • With special Disk Anvils. The Uni-Mike is used as a height micrometer.The disks have a lapped, mirror surface.
      • With a standard bar except
        0-25mm and 0 -1” model.
      • Supplied in fitted plastic case.


    • Technical Data Accuracy: Refer to the list of specifications.
      Resolution*: 0.001mm or .00005"/0.001mm
      Graduation**: 0.01mm or .0001"
      Spindle face: Carbide tipped


      Order Number Range Accuracy Description Mass
      117-101 0-25mm ±4µm With Ratchet stop 255g
      117-102 25-50mm ±4µm With Ratchet stop 320g


















      Product form

      MITUTOYO  Uni-Mike - Series  117 - Interchangeable Anvil Type EATURES IP65 water/dust protection (Series 317) Measures tubing thickness, shoulderedge distance,... Read more

      SKU: 117-101

      $265.81 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal

        Description

        MITUTOYO  Uni-Mike - Series  117 - Interchangeable Anvil Type

          • EATURES
            • IP65 water/dust protection (Series 317)
            • Measures tubing thickness, shoulderedge distance, rivet head height,
              etc. with interchangeable anvils (flat anvil, rod anvil,V-anvil).
            • Supplied with Flat Anvil (201216) and Rod Anvil:
              ø3mm/.118” rod anvil (201217) for 0-25mm/0-1” models, ø5mm/.197”
              (201379) for 25-50mm / 1-2” model.
            • With special Disk Anvils. The Uni-Mike is used as a height micrometer.The disks have a lapped, mirror surface.
            • With a standard bar except
              0-25mm and 0 -1” model.
            • Supplied in fitted plastic case.


          • Technical Data Accuracy: Refer to the list of specifications.
            Resolution*: 0.001mm or .00005"/0.001mm
            Graduation**: 0.01mm or .0001"
            Spindle face: Carbide tipped


            Order Number Range Accuracy Description Mass
            117-101 0-25mm ±4µm With Ratchet stop 255g
            117-102 25-50mm ±4µm With Ratchet stop 320g
