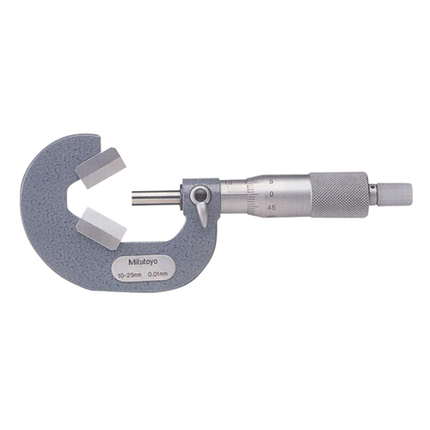

MITUTOYO V-Anvil Micrometers - Series 114 - 3 Flutes

Description

MITUTOYO  V-Anvil Micrometers - Series  114 - 3 Flutes

  • FEATURES
    • Measures the outside diameter of cutting heads(such as taps,reamers,end mills)
      with odd number of flutes.
    • With Ratchat Stop for constant force.
    • Supplied with setting standard.
    • V-anvils with a centerline grove are available.They are useful for measuring pitch diameters of of taps which have a small diamter by using single-wire method.
    • With SPC output (Series 314).
    • Supplied in fitted plastic case.

    Technical Data

    Accuracy: Refer to the list of specifications.
    Resolution*: 0.001mm or .00005"/0.001mm
    Graduation**: 0.01mm, .001" or .0001"
    Flatness (spindle/anvil):
    Analog model: 0.6µm/.000024”, 1.3µm/.00005"
    Digital Model: 0.3µm/.000012". 1µm/.00004"
    Spindle face: Carbide tipped
    Display*: LCD
    Battery*: SR44 (1 pc.), 938882
    Battery life*: Approx. 1.2 yrs under normal use
    *Digital models **Analog models
    Function of Digital Model
    Zero-setting, Data hold, Data output, Preset, inch/mm conversion (inch/mm models)
    Alarm: Low voltage, Counting value composition error
    Function Lock
    2 presets

    Optional Accessories for Digital Model
    05CZA662: SPC cable with data switch (1m / 40”)
    05CZA663: SPC cable with data switch (2m / 80”)



      Order Number Range Metric # of Flutes Accuracy Grove Tip Description Mass
      114-101 1-15mm 3 ±4µm W/Groove - 120g
      114-102 10-25mm 3 ±4µm W/Groove - 280g








      Product form

      MITUTOYO  V-Anvil Micrometers - Series  114 - 3 Flutes FEATURES Measures the outside diameter of cutting heads(such as taps,reamers,end mills)with... Read more

      SKU: 114-101

      $413.21 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
