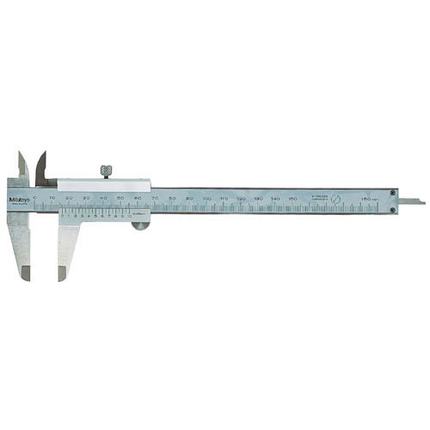

MITUTOYO Vernier Calipers Series 530 - Standard Model

Description

Vernier Calipers Series 530 - Standard Model

Series 530
FEATURES
  • Measures OD (outside diameter), ID (inside diameter), depth, and steps.
  • The small vernier face angle (14°) provides easy reading.
  • Dual reading scales on vernier. (metric/inch and inch models only)
  • Lock screw for holding thesliding jaw position.
  • Carbide-tipped jaw type calipers are also available.
  • Supplied with vinyl holster in fitted carton. Except 600mm / 24” models are carton only. 1000mm / 40” supplied in wooden case.

Technical Data

Graduation: 0.05mm, 0.05mm (1/128”) or .001” (1/128”)
High accuracy type: 0.02mm or 0.02mm (.001”)
Order No Range Accuracy Vernier Graduation Remarks
Lower Scale
530-100 0-100mm 0.05mm 0.05mm 　
530-101 0-150mm 0.05mm 0.05mm -
530-108 0-200mm 0.05mm 0.05mm -
530-109 0-300mm 0.08mm 0.05mm -
530-501 0-600mm 0.1mm 0.05mm -
530-502 0-1000mm 0.15mm 0.05mm -
530-122 0-150mm 0.03mm 0.02mm High accuracy model
530-123 0-200mm 0.03mm 0.02mm High accuracy model
530-124 0-300mm 0.04mm 0.02mm High Accuracy Model :±0.04
Product form

Vernier Calipers Series 530 - Standard Model Series 530 FEATURES Measures OD (outside diameter), ID (inside diameter), depth, and steps.... Read more

SKU: 530-100
Barcode: 4946368632322

$68.57 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Vernier Calipers Series 530 - Standard Model

      Series 530
      FEATURES
      • Measures OD (outside diameter), ID (inside diameter), depth, and steps.
      • The small vernier face angle (14°) provides easy reading.
      • Dual reading scales on vernier. (metric/inch and inch models only)
      • Lock screw for holding thesliding jaw position.
      • Carbide-tipped jaw type calipers are also available.
      • Supplied with vinyl holster in fitted carton. Except 600mm / 24” models are carton only. 1000mm / 40” supplied in wooden case.

      Technical Data

      Graduation: 0.05mm, 0.05mm (1/128”) or .001” (1/128”)
      High accuracy type: 0.02mm or 0.02mm (.001”)
      Order No Range Accuracy Vernier Graduation Remarks
      Lower Scale
      530-100 0-100mm 0.05mm 0.05mm 　
      530-101 0-150mm 0.05mm 0.05mm -
      530-108 0-200mm 0.05mm 0.05mm -
      530-109 0-300mm 0.08mm 0.05mm -
      530-501 0-600mm 0.1mm 0.05mm -
      530-502 0-1000mm 0.15mm 0.05mm -
      530-122 0-150mm 0.03mm 0.02mm High accuracy model
      530-123 0-200mm 0.03mm 0.02mm High accuracy model
      530-124 0-300mm 0.04mm 0.02mm High Accuracy Model :±0.04
