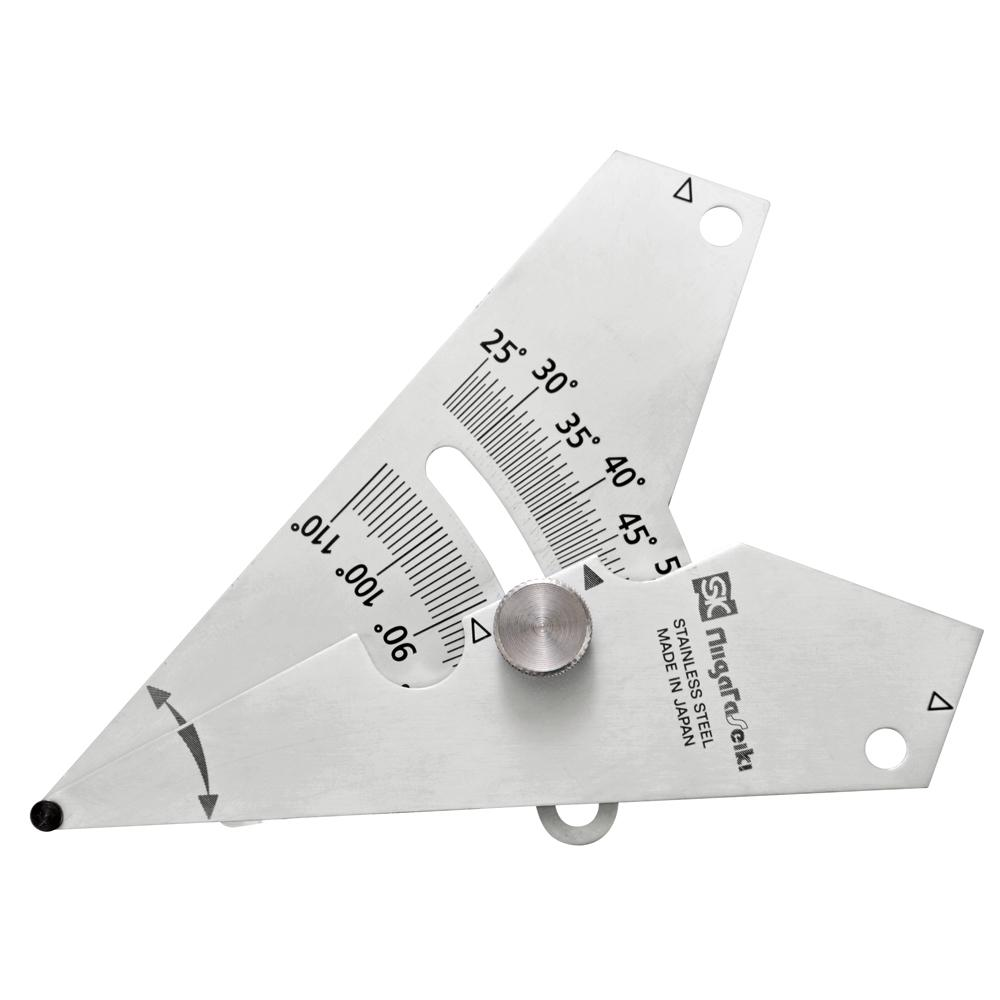

Niigata Seiki (SK) Angle groove gauge WGA-65

Description

Niigata Seiki (SK) Angle groove gauge WGA-65

Feature

  • By sharpening the tip, it is possible to measure thin plates with a root gap of 0 mm and 15 mm or less.
  • Direct measurement of the groove angle of the welded joint is possible with this one.
  • At the same time, it is possible to measure the angle of the T joint without overlaying.
  • Large scale that is easy to use in the field. The minimum scale corresponds to 0.5 °.
  • A matte silver finish is used on the surface to make the scale easier to read.
  • Robust, light and convenient to carry (with plastic case)
  • A product specializing in angle measurement! The groove angle can be measured with a minimum reading of 0.5 °, which corresponds to various standard tolerances.

specification

  • Material: Stainless steel (SUS410)
  • Groove (bevel) angle: 25-65 ° (minimum reading: 0.5 °)
  • Angle of the joint Inclination after stud welding: 70-110 °
  • Angle measurement accuracy: ± 0.5 °
  • Groove angle measurement of butt joint, angle measurement of weld joint
  • Body mass: 74g
  • Body length: 117.5mm

Package size: 141 x 36 x 105 mm 　170 g

Product form

Niigata Seiki (SK) Angle groove gauge WGA-65 Feature By sharpening the tip, it is possible to measure thin plates with... Read more

SKU: 413-2370
Barcode: 4975846008076

$148.52 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Nov 24, 2024 17:00:00 +0900

    Description

    Niigata Seiki (SK) Angle groove gauge WGA-65

    Feature

    • By sharpening the tip, it is possible to measure thin plates with a root gap of 0 mm and 15 mm or less.
    • Direct measurement of the groove angle of the welded joint is possible with this one.
    • At the same time, it is possible to measure the angle of the T joint without overlaying.
    • Large scale that is easy to use in the field. The minimum scale corresponds to 0.5 °.
    • A matte silver finish is used on the surface to make the scale easier to read.
    • Robust, light and convenient to carry (with plastic case)
    • A product specializing in angle measurement! The groove angle can be measured with a minimum reading of 0.5 °, which corresponds to various standard tolerances.

    specification

    • Material: Stainless steel (SUS410)
    • Groove (bevel) angle: 25-65 ° (minimum reading: 0.5 °)
    • Angle of the joint Inclination after stud welding: 70-110 °
    • Angle measurement accuracy: ± 0.5 °
    • Groove angle measurement of butt joint, angle measurement of weld joint
    • Body mass: 74g
    • Body length: 117.5mm

    Package size: 141 x 36 x 105 mm 　170 g
