Description

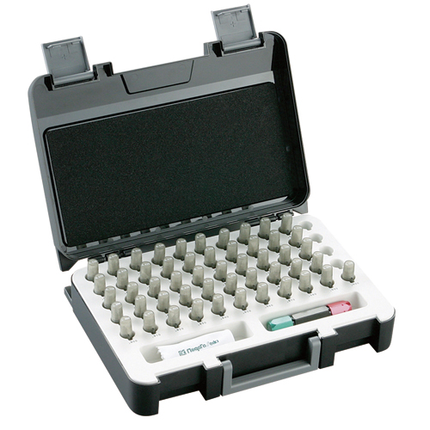

Niigata Seiki (SK) pin gauge set 2.00 to 2.50 AA-2A
■ It is the most common pin gauge set.
■ All products have been sub-zero processed to prevent aging.
■ Because it is a perfect circle, it can be used in all situations.
■ It is with aluminum pin vise.
[Use]
・ Inspection of hole diameter.
-As a mold part.
-For core blur inspection.
・ For R measurement.
[Specifications]
Set contents: 2.00 to 2.50 (51 0.01 mm steps in total), mass (kg): 1.1
Diameter accuracy: ± 0.8 μm, roundness / cylindricity: within 0.5 μm, hardness: 650 HV or more
[Caution]
・Special sizes are also available
| Product number |
set content |
Mass
(kg / set)
|
| AA-1B |
1.50-2.00 (51 0.01mm steps in total) |
1.10 |
| AA-2A |
2.00-2.50 (51 0.01mm steps in total) |
1.10 |
| AA-2B |
2.50 to 3.00 (51 0.01mm steps in total) |
1.10 |
| AA-3A |
3.00 to 3.50 (51 0.01mm steps in total) |
1.10 |
| AA-3B |
3.50 to 4.00 (51 0.01mm steps in total) |
1.30 |
| AA-4A |
4.00 to 4.50 (51 0.01mm steps in total) |
1.40 |
| AA-4B |
4.50 to 5.00 (51 0.01mm steps in total) |
1.50 |
| AA-5A |
5.00-5.50 (51 0.01mm steps in total) |
1.60 |
| AA-5B |
5.50 to 6.00 (51 0.01mm steps in total) |
1.60 |
| AA-6A |
6.00-6.50 (51 0.01mm steps in total) |
1.60 |
