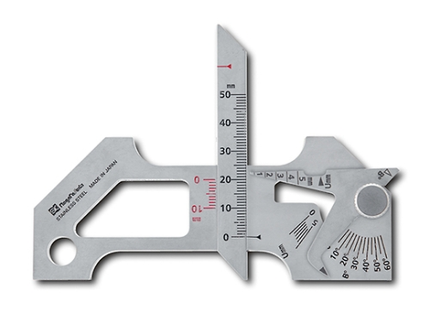

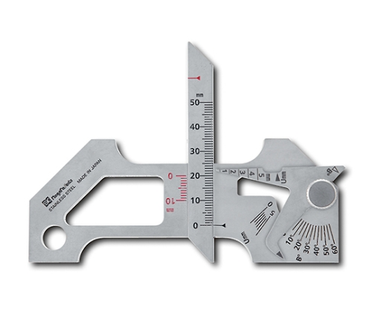

Niigata Seiki (SK) Welding Gauge WG-3

Description

Niigata Seiki (SK) Welding Gauge WG-3

Feature

  • For speeding up welding work and rationalizing quality control
  • Can measure extra dimensions up to 50 mm
  • Maintaining a sense of stability during measurement by increasing the base thickness
  • Equipped with a rotor, various measurements are possible
  • Silver finish reduces reflections when taking pictures
  • With a translucent plastic case that is easy to check
  • The latest product in the WG series! Various improvements have been made to conventional products to further improve usability. It boasts the largest extra measurement length of 50 mm (*) among existing welding gauges. (* Including other companies in leg length and throat thickness, according to our research as of July 2012)

specification

  • Material: Stainless steel (SUS410)
  • Corner meat leg length measurement: 0 to 50 mm
  • Throat thickness measurement of fillet: 0-50mm
  • Extra height measurement 0-10mm * Bead straddle width: 60mm
  • Mismatch step measurement: 0 to 50 mm * Bead straddle width: 53 mm
  • Depth step measurement: 0 to 50 mm
  • Plate thickness measurement: 0-35 mm
  • Undercut depth measurement: 0 to 50 mm
  • Bevel angle measurement: 0-60 ° C
  • Route spacing measurement: 0.5-5 mm
  • Measurement of weld overlay, fillet size and misalignment, gap size, undercut, angle, etc.
  • Body mass: 198g

Package size: 141 x 36 x 105 mm 　290 g

      Product form

      Niigata Seiki (SK) Welding Gauge WG-3 Feature For speeding up welding work and rationalizing quality control Can measure extra dimensions... Read more

      SKU: 413-0479
      Barcode: 4975846008052

      $226.96 Excl. VAT

        • Quick delivery worldwide
        • Satisfied or refunded
        • Secure payments Paypal

          Description

          Niigata Seiki (SK) Welding Gauge WG-3

          Feature

          • For speeding up welding work and rationalizing quality control
          • Can measure extra dimensions up to 50 mm
          • Maintaining a sense of stability during measurement by increasing the base thickness
          • Equipped with a rotor, various measurements are possible
          • Silver finish reduces reflections when taking pictures
          • With a translucent plastic case that is easy to check
          • The latest product in the WG series! Various improvements have been made to conventional products to further improve usability. It boasts the largest extra measurement length of 50 mm (*) among existing welding gauges. (* Including other companies in leg length and throat thickness, according to our research as of July 2012)

          specification

          • Material: Stainless steel (SUS410)
          • Corner meat leg length measurement: 0 to 50 mm
          • Throat thickness measurement of fillet: 0-50mm
          • Extra height measurement 0-10mm * Bead straddle width: 60mm
          • Mismatch step measurement: 0 to 50 mm * Bead straddle width: 53 mm
          • Depth step measurement: 0 to 50 mm
          • Plate thickness measurement: 0-35 mm
          • Undercut depth measurement: 0 to 50 mm
          • Bevel angle measurement: 0-60 ° C
          • Route spacing measurement: 0.5-5 mm
          • Measurement of weld overlay, fillet size and misalignment, gap size, undercut, angle, etc.
          • Body mass: 198g

          Package size: 141 x 36 x 105 mm 　290 g
