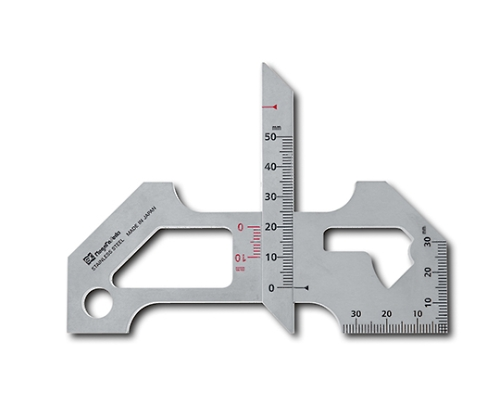

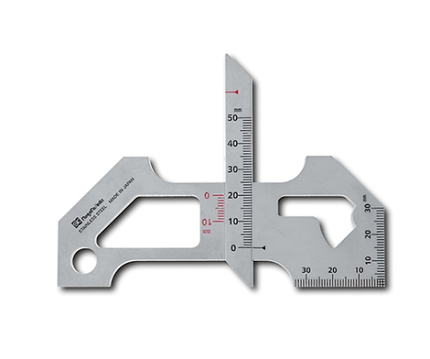

Niigata Seiki (SK) Welding gauge WG-5

Description

Niigata Seiki (SK) Welding gauge WG-5

Feature

  • For speeding up welding work and rationalizing quality control
  • Can measure extra dimensions up to 50 mm
  • Maintaining a sense of stability during measurement by increasing the base thickness
  • Silver finish reduces reflections when taking pictures
  • With a translucent plastic case that is easy to check
  • The latest product in the WG series! Various improvements have been made to conventional products to further improve usability. It boasts the largest extra measurement length of 50 mm (*) among existing welding gauges. (* Including other companies in leg length and throat thickness, according to our research as of July 2012)

specification

  • Material: Stainless steel (SUS410)
  • Corner meat leg length measurement: 0 to 50 mm
  • Throat thickness measurement of fillet: 0-50mm
  • Extra height measurement 0-10mm * Bead straddle width: 60mm
  • Mismatch step measurement: 0 to 50 mm * Bead straddle width: 53 mm
  • Depth step measurement: 0 to 50 mm
  • Plate thickness measurement: 0 to 30 mm
  • Measurement of weld overlay, fillet size and misalignment, etc.
  • Body mass: 187g

Package size: 141 x 36 x 105 mm 　270 g

      Product form

      Niigata Seiki (SK) Welding gauge WG-5 Feature For speeding up welding work and rationalizing quality control Can measure extra dimensions... Read more

      SKU: 413-0488

      $226.46 Excl. VAT

        • Ships within 5–10 business days
        • Ships from South Korea
        • Export packing available
        • Worldwide shipping
        • Secure payments Paypal
