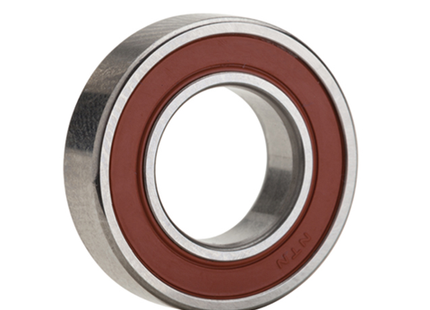

NTN 6210LLUC3 Deep Groove Ball Bearings , D=50

Description

NTN 6210LLUC3 Deep Groove Ball Bearings , D=50



SPECIFICATIONS

Type of Product : Deep Groove Ball Bearing
Model No : 6210LLUC3
Width : 20 mm
Inner Diameter : 50 mm







1. Design features and characteristics

Deep groove ball bearings are very widely used. A deep groove is formed on the inner and outer ring of the bearing enabling the bearing to sustain radial and axial loads in either direction as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications. When two or more deep groove ball bearings are used in combination and mounted adjacent to each other a duplex set (D2) should be used. Duplex bearings (D2) utilize controlled tolerances to more evenly distribute the loading between the individual bearing rows which improves the overall performance of the assembly. In addition to unsealed and unlubricated “open” bearings, NTN provides deep groove ball bearings that are pre-lubricated with grease and enclosed by seals or shields. See section “11. Lubrication” for a list of some of the greases which can be used. Table 1 shows the construction and special characteristics of various sealed deep groove ball bearings.

Types and codes N Shielded type Shielded type
Non-contact type ZZ Non-contact type LLB Contact type LLU Low torque type LLH
Construction
Metal shield plate is affixed to the outside ring; the inner ring incorporates a V-groove and labyrinth clearance. The outer ring incorporates synthetic rubber molded to a steel plate; seal edge is aligned with V-groove along inner ring surface with labyrinth clearance The outer ring incorporates synthetic rubber molded to a steel plate; seal edge contacts V-groove along inner ring surface Basic construction is the same as LLU type, but a specially designed lip on the edge of the seal prevents foreign matter penetration; low torque construction.
Torque Small Small Higher Medium
Dust proofing Good Better than ZZ-type Excellent Much better than LLB-type
Water proofing Poor Poor Very good Good
High speed capacity Same as open type Same as open type Limited by contact seals Much better than LLU-type
Allowable temp. range Depends on lubricant −25 to 120°C −25 to 110°C −25 to 120°C

Product form

NTN 6210LLUC3 Deep Groove Ball Bearings , D=50   SPECIFICATIONS Type of Product : Deep Groove Ball Bearing Model No... Read more

SKU: 6210LLUC3

$18.86 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    NTN 6210LLUC3 Deep Groove Ball Bearings , D=50



    SPECIFICATIONS

    Type of Product : Deep Groove Ball Bearing
    Model No : 6210LLUC3
    Width : 20 mm
    Inner Diameter : 50 mm







    1. Design features and characteristics

    Deep groove ball bearings are very widely used. A deep groove is formed on the inner and outer ring of the bearing enabling the bearing to sustain radial and axial loads in either direction as well as the complex loads which result from the combination of these forces. Deep groove ball bearings are suitable for high speed applications. When two or more deep groove ball bearings are used in combination and mounted adjacent to each other a duplex set (D2) should be used. Duplex bearings (D2) utilize controlled tolerances to more evenly distribute the loading between the individual bearing rows which improves the overall performance of the assembly. In addition to unsealed and unlubricated “open” bearings, NTN provides deep groove ball bearings that are pre-lubricated with grease and enclosed by seals or shields. See section “11. Lubrication” for a list of some of the greases which can be used. Table 1 shows the construction and special characteristics of various sealed deep groove ball bearings.

    Types and codes N Shielded type Shielded type
    Non-contact type ZZ Non-contact type LLB Contact type LLU Low torque type LLH
    Construction
    Metal shield plate is affixed to the outside ring; the inner ring incorporates a V-groove and labyrinth clearance. The outer ring incorporates synthetic rubber molded to a steel plate; seal edge is aligned with V-groove along inner ring surface with labyrinth clearance The outer ring incorporates synthetic rubber molded to a steel plate; seal edge contacts V-groove along inner ring surface Basic construction is the same as LLU type, but a specially designed lip on the edge of the seal prevents foreign matter penetration; low torque construction.
    Torque Small Small Higher Medium
    Dust proofing Good Better than ZZ-type Excellent Much better than LLB-type
    Water proofing Poor Poor Very good Good
    High speed capacity Same as open type Same as open type Limited by contact seals Much better than LLU-type
    Allowable temp. range Depends on lubricant −25 to 120°C −25 to 110°C −25 to 120°C
