Peacock Dial Thickness Gauges (Large type) J-A

  • VendorPEACOCK

Description

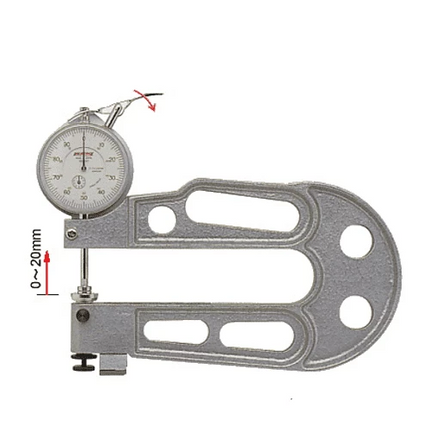

Peacock Dial Thickness Gauges (Large type) J-A

  • These large thickness gauges having extended throat depth to measure at the center of wide sheets
Model J-A
Graduation 0.01mm
Range 0~20mm

  • The gauge sits by stand
  • Ø10mm flat contact point and Ø20mm anvil (metal)



Specifications
Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
Dia (mm) Parallelism (µm)
J-A 0.01 0~20 150 ±22 10 5 2.0



 [PEACOCK] Dial Thickness Gauges (Large type) J-A



Product form

Peacock Dial Thickness Gauges (Large type) J-A These large thickness gauges having extended throat depth to measure at the center... Read more

SKU: J-A

$713.80 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    Peacock Dial Thickness Gauges (Large type) J-A

    • These large thickness gauges having extended throat depth to measure at the center of wide sheets
    Model J-A
    Graduation 0.01mm
    Range 0~20mm

    • The gauge sits by stand
    • Ø10mm flat contact point and Ø20mm anvil (metal)



    Specifications
    Model Graduation(mm) Range (mm) Throat depth (mm) Accuracy (µm) Contact Point Measuring force less than (N)
    Dia (mm) Parallelism (µm)
    J-A 0.01 0~20 150 ±22 10 5 2.0
