Peacock Linear Gauges ; 10mm range,D-10S

  • VendorPEACOCK

Description

Peacock Linear Gauges ; 10mm range,D-10S

 Measurement range (0 - 20mm)

  • 10mm and 20mm measurement ranges are the easiest to use.
  • Used in conjunction with digital counters, these gauges can be set up in places
  • where dial gauges are now being used.
  • Set the gauge by either stem or lug back.
  • For lifting spindle, both lever and release types are available.



Rectangular wave output typ (DN-10/DN-10S/DN-20/DN-20S)

  • For use in electrically noisy environments.
  • For applications requiring extra long cables. (10 to 50 meters are available)

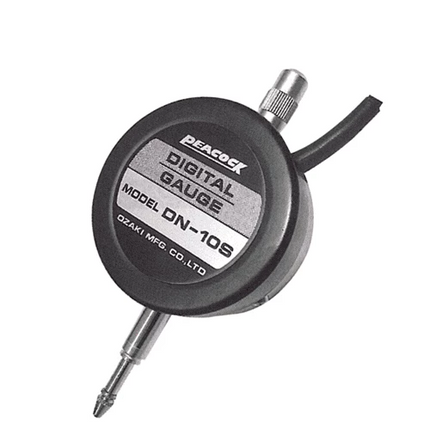

[PEACOCK] Linear Gauges ; 10mm range,D-10S



Specifications
Model D-10S
Range 10mm
Resolution 0.001mm
Accuracy (excluding quantized error) 0.002mm
Measuring force Less than 1.0N
Cable length 2m
Mounting method Ø8mm stem or 6.5mm hole on lug back
Contact point M2.5 × 0.45 SØ2.4mm steel (X-2)
Operating temperature 0 - 40ºC
Weight 220g
Output Signal 90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Rectangular wave (L=0v H=5v)
Compatible standard counters C-500 / C-700
CM-5B (*except DN-10S, DN-20S)
Options * Release (RE-4)  Lifting lever (LL-1) * Release (RE-4)
* Dust proof rubber (BG-10) * Flat back (GB3-D20)
* Flat back (GB3-D1O) , screws (S-110) 　
* Customer must specify if application is up-side-down.
  The measuring force changes when the gauge is inverted.

* Features

DN-10 DN-10S DN-20 DN-20S
1. Recommended for locations where cable extension (10 to 50 meters) is necessary.
2. Recommended for use in electrically noisy environments.
Notes of wiring : A signal wire should be duct wiring apart from other Power lines.



[PEACOCK] Linear Gauges ; 10mm range,D-10

Product form

Peacock Linear Gauges ; 10mm range,D-10S  Measurement range (0 - 20mm) 10mm and 20mm measurement ranges are the easiest to... Read more

SKU: D-10S

$723.40 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
