Peacock Linear Gauges Digital Counters, C-700

  • VendorPEACOCK

Description

Peacock Linear Gauges Digital Counters, C-700

Model C-700

User friendliness combined with multi-functinality.
Multi-type
  • Equipped with large display functions and various measurement functions, our Digital Counters can be installed in a Control Panel or placed on a desk due to their compact designs

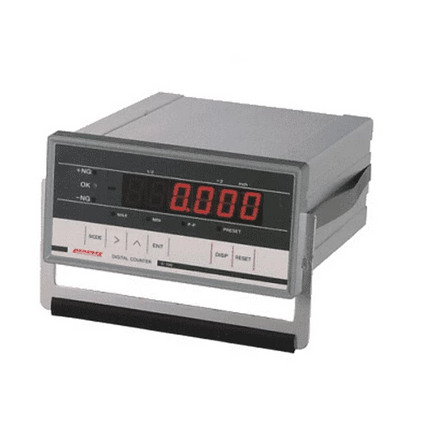

[PEACOCK] Linear Gauges Digital Counters, C-700

Specifications of Digital Counters
Model C-500

Displayed digits

  • Selection of 10µm
  • Selection of 1µm

Display



  • -9999.99 - 00.00 - 9999.99
  • -999.999 - 0.000 - 999.999

High-luminance LED display with 7 segments (red)
Power supply voltage & power consumption AC100V -- AC240V / 9VA or lower
Operating temperature 0 -- +40ºC

Compatible Linear Gauges

  • Selection of 10µm display
  • Selection of 1µm display



  • DL-2, D-5, D-10, D-20, D-30, D-50, D-100, DN-10, DN-20, D-5UZ
  • DL-2S, D-5S, D-10S, D-20S, D-30S, D-50S, D-100S DN-10S, DN-20S
Accessories
  • AC power cord (2m) ; One cord
  • Metal fittings for panel installation ; Two units ( to be used for installation in panel and securing stand fittings )
  • Stand fittings ; One unit ( to be used when counter is used as desktop device )
Terminal block functions ( Rear panel )
  • Terminal block --> Screwless terminal block
  • Usable electric cables --> AWG22 - 28
  • Length of peeled wire of cables --> 8 - 9mm
  • Pin alignment
(*1) St/Sp Controls "START" and "STOP" of MAX, MIN, P-P
measurement mode.
(*2) React Controls "SUSPEND" and "START" of P-P
measurement mode.
3 Latch Controls "LATCH" and "CANCEL" of measured value.
4 Reset External "RESET"
"PRESET" ( Function available only in Model No. C-700 )
5 Alarm Error signal output
　 Max Min P-P
Display Display Display
(*6) -NG Outputs -NG based on --> +NG(2) -NG(1) NG(2)
OK±NG judgment (red LED).
(*7) OK Outputs OK based on --> OK OK OK
OK±NG judgment (green LED).
(*8) +NG Outputs +NG based on --> +NG(1) -NG(2) NG(1)
OK±NG judgment (orange LED).

(1) : NG output in first stage
(2) : NG output in second stage


9 GND GND
(* ) Circled numbers indicate functions available only in Model No. C-700
Dip sw setting functions
( Printed circuit board )
Dip(1) Dip(2)
 SW 1 Select 1µm or 10µm  SW 1 Settings by Manufacturer
 SW 2 Select direction of counting  SW 2 Select whether or not to include default values for OK±NG judgment
 SW 3 Select activation or non-activation of error output.  SW 3 Select either "orthogonal" or "sine" for input waveform.
 SW 4 Select activation or non- activation of overflow.  SW 4 Select either 400msec or 100msec for RESET time.
Data output (RS-232C)
D-Sub9P plug
INCH screw		 　
Pin Alignment
  1  NC -- Communication mode ; Half-duplexasynchronouscommunication
  2  Rxd in <-- Communication speed ; 9600bps
  3  Txd --> out Format ; 7Bit ASCI I
  4  NC -- Parity ; even number
  5  SG -- Stop bit ; 1Bit
  6  NC -- RTS / CTS ; Returned when not in use.
  7  RTS --> out Reception command ; Transmission request ASCI I [T] [t]
  8  CTS in <-- ; Reset ASCI I  [R] [r] 　
  9  NC -- Connection cables ; Cross cables ( not included )



Options

  • Excel input software :PK-2002  ; Data imported into Excel cells from RS-232C output.
  • BCD output board : CB-BCD  ; Cannot be used in combination with RS-232C output.
Display functions
  • 1/1 display --> Displays the measured value as is.
  • 1/2 display --> Displays the measured value after halving it.
  • ×2 display --> Displays the measured value after doubling it.
Note ; With 1µm display and ×2 display, the lowest digit will be displayed as an even number
Presetting display function
  • Can display preset values
Measurement mode function
Current value display
Maximum value (Max) RESET action is taken by
ST of the ST/SP control
terminal.
Minimum value (Min)
Deflection (P-P)
OK±NG judgment function
Current value mode +NG OK   -NG
Maximum value mode OK +NG (1) +NG (2)
Minimum value mode OK -NG (1) -NG (2)
Deflection mode OK NG (1) NG (2)
Dimensions/ Weight 144(W)×72(H)×160(D)mm / 950g



[PEACOCK] Linear Gauges Digital Counters, C-700

Product form

Peacock Linear Gauges Digital Counters, C-700 Model C-700 User friendliness combined with multi-functinality. Multi-type Equipped with large display functions and... Read more

SKU: C-700

$1,852.84 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      Peacock Linear Gauges Digital Counters, C-700

      Model C-700

      User friendliness combined with multi-functinality.
      Multi-type
      • Equipped with large display functions and various measurement functions, our Digital Counters can be installed in a Control Panel or placed on a desk due to their compact designs

      [PEACOCK] Linear Gauges Digital Counters, C-700

      Specifications of Digital Counters
      Model C-500

      Displayed digits

      • Selection of 10µm
      • Selection of 1µm

      Display



      • -9999.99 - 00.00 - 9999.99
      • -999.999 - 0.000 - 999.999

      High-luminance LED display with 7 segments (red)
      Power supply voltage & power consumption AC100V -- AC240V / 9VA or lower
      Operating temperature 0 -- +40ºC

      Compatible Linear Gauges

      • Selection of 10µm display
      • Selection of 1µm display



      • DL-2, D-5, D-10, D-20, D-30, D-50, D-100, DN-10, DN-20, D-5UZ
      • DL-2S, D-5S, D-10S, D-20S, D-30S, D-50S, D-100S DN-10S, DN-20S
      Accessories
      • AC power cord (2m) ; One cord
      • Metal fittings for panel installation ; Two units ( to be used for installation in panel and securing stand fittings )
      • Stand fittings ; One unit ( to be used when counter is used as desktop device )
      Terminal block functions ( Rear panel )
      • Terminal block --> Screwless terminal block
      • Usable electric cables --> AWG22 - 28
      • Length of peeled wire of cables --> 8 - 9mm
      • Pin alignment
      (*1) St/Sp Controls "START" and "STOP" of MAX, MIN, P-P
      measurement mode.
      (*2) React Controls "SUSPEND" and "START" of P-P
      measurement mode.
      3 Latch Controls "LATCH" and "CANCEL" of measured value.
      4 Reset External "RESET"
      "PRESET" ( Function available only in Model No. C-700 )
      5 Alarm Error signal output
      　 Max Min P-P
      Display Display Display
      (*6) -NG Outputs -NG based on --> +NG(2) -NG(1) NG(2)
      OK±NG judgment (red LED).
      (*7) OK Outputs OK based on --> OK OK OK
      OK±NG judgment (green LED).
      (*8) +NG Outputs +NG based on --> +NG(1) -NG(2) NG(1)
      OK±NG judgment (orange LED).

      (1) : NG output in first stage
      (2) : NG output in second stage


      9 GND GND
      (* ) Circled numbers indicate functions available only in Model No. C-700
      Dip sw setting functions
      ( Printed circuit board )
      Dip(1) Dip(2)
       SW 1 Select 1µm or 10µm  SW 1 Settings by Manufacturer
       SW 2 Select direction of counting  SW 2 Select whether or not to include default values for OK±NG judgment
       SW 3 Select activation or non-activation of error output.  SW 3 Select either "orthogonal" or "sine" for input waveform.
       SW 4 Select activation or non- activation of overflow.  SW 4 Select either 400msec or 100msec for RESET time.
      Data output (RS-232C)
      D-Sub9P plug
      INCH screw      		 　
      Pin Alignment
        1  NC -- Communication mode ; Half-duplexasynchronouscommunication
        2  Rxd in <-- Communication speed ; 9600bps
        3  Txd --> out Format ; 7Bit ASCI I
        4  NC -- Parity ; even number
        5  SG -- Stop bit ; 1Bit
        6  NC -- RTS / CTS ; Returned when not in use.
        7  RTS --> out Reception command ; Transmission request ASCI I [T] [t]
        8  CTS in <-- ; Reset ASCI I  [R] [r] 　
        9  NC -- Connection cables ; Cross cables ( not included )



      Options

      • Excel input software :PK-2002  ; Data imported into Excel cells from RS-232C output.
      • BCD output board : CB-BCD  ; Cannot be used in combination with RS-232C output.
      Display functions
      • 1/1 display --> Displays the measured value as is.
      • 1/2 display --> Displays the measured value after halving it.
      • ×2 display --> Displays the measured value after doubling it.
      Note ; With 1µm display and ×2 display, the lowest digit will be displayed as an even number
      Presetting display function
      • Can display preset values
      Measurement mode function
      Current value display
      Maximum value (Max) RESET action is taken by
      ST of the ST/SP control
      terminal.
      Minimum value (Min)
      Deflection (P-P)
      OK±NG judgment function
      Current value mode +NG OK   -NG
      Maximum value mode OK +NG (1) +NG (2)
      Minimum value mode OK -NG (1) -NG (2)
      Deflection mode OK NG (1) NG (2)
      Dimensions/ Weight 144(W)×72(H)×160(D)mm / 950g



      [PEACOCK] Linear Gauges Digital Counters, C-700
