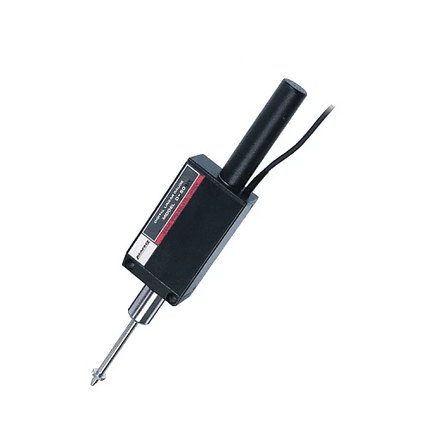

Peacock Linear Gauges ; Measurement range 0 - 50mm , D-50 Model D-50 Resolution 0.01mm Range 0 - 50mm With... Read more

SKU: D-50

$1,033.19 Excl. VAT

Reviews

0 out of 5 stars

This product has no reviews yet

Specifications
Model		D-50
Range		50mm
Resolution		0.01mm
Accuracy (excluding quantized error)		0.01mm

Measuring force		Less than 3.0N
Cable length		2m
Mounting method		ø 20mm stem or fastening by M4 screws at two positions
Contact point		M2.5 × 0.45 Sø 2.4mm steel
Operating temperature		0 - 40ºC
Weight		450g
Output signal		90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard counters		C-500 / C-700 / CM-5B
Accessories		Finger lever for lifting spindle ---> 1 pc
Featuares		If Spindle inner spring is removed, measuring force will be that of spindle itself (only when in upright position) D-50 , D-50S ---> 1.0N D-100 , D-100S ---> 1.1N Recommended stand is PDS-2



Option		Level mounting clamp ( GB-50 ) Customer must specify if application is up-side-down. The measuring force changes when the gauge is inverted.

Specifications
Model		D-50
Range		50mm
Resolution		0.01mm
Accuracy (excluding quantized error)		0.01mm

Measuring force		Less than 3.0N
Cable length		2m
Mounting method		ø 20mm stem or fastening by M4 screws at two positions
Contact point		M2.5 × 0.45 Sø 2.4mm steel
Operating temperature		0 - 40ºC
Weight		450g
Output signal		90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard counters		C-500 / C-700 / CM-5B
Accessories		Finger lever for lifting spindle ---> 1 pc
Featuares		If Spindle inner spring is removed, measuring force will be that of spindle itself (only when in upright position) D-50 , D-50S ---> 1.0N D-100 , D-100S ---> 1.1N Recommended stand is PDS-2



Option		Level mounting clamp ( GB-50 ) Customer must specify if application is up-side-down. The measuring force changes when the gauge is inverted.
