| Specifications |
| Model |
D-50S |
| Range |
50mm |
| Resolution |
0.001mm |
| Accuracy (excluding quantized error) |
0.004mm |
|
| Measuring force |
Less than 3.0N |
| Cable length |
2m |
| Mounting method |
ø 20mm stem or fastening by M4 screws at two positions |
| Contact point |
M2.5 × 0.45 Sø 2.4mm steel |
| Operating temperature |
0 - 40ºC |
| Weight |
450g |
| Output signal |
90º phase difference, 20µm pitch (R03-PB8M Tajimi connector) |
| Compatible standard counters |
C-500 / C-700 / CM-5B |
| Accessories |
Finger lever for lifting spindle ---> 1 pc |
| Featuares |
- If Spindle inner spring is removed, measuring force will be that of spindle itself (only when in upright position)
- D-50 , D-50S ---> 1.0N D-100 , D-100S ---> 1.1N
- Recommended stand is PDS-2
|
|
|
|
| Option |
- Level mounting clamp ( GB-50 )
- Customer must specify if application is up-side-down.
- The measuring force changes when the gauge is inverted.
|
|
|

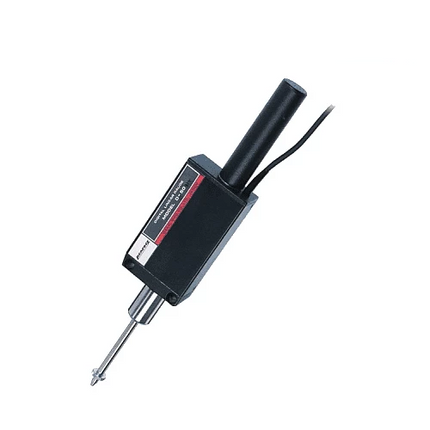

![[PEACOCK] Linear Gauges ; Measurement range 0 - 50mm , D-50S](http://wowtoolz.com/cdn/shop/products/copy_f4b4cbdf-64c1-48fe-b80a-cbfe8a2dfdf1.png?v=1570325494)
