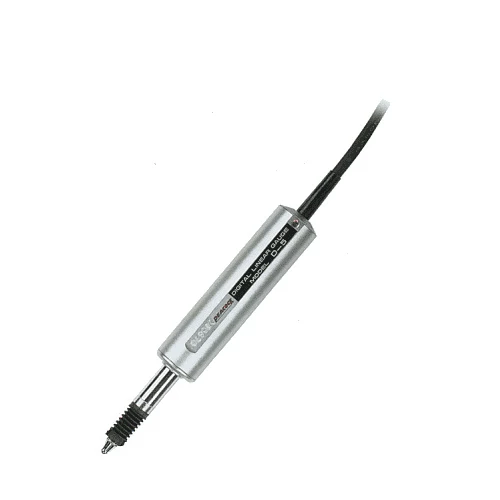

Peacock Linear Gauges ; Measurement range ( 0 - 5mm ),D-5 Pencil Type Pencil Type D-5 Resolution 0.01mm Range 0～5mm... Read more

SKU: D-5

$603.12 Excl. VAT

Reviews

0 out of 5 stars

This product has no reviews yet

Specifications
Model		D-5
Range		5mm
Resolution		0.01mm
Accuracy (excluding quantized error)		0.005mm

Measuring force		Less than 0.5N
Mounting method		ø 8mm stem

Contact point		Sø 2.4mm cooper (X-2)
Cord length		2m
Operating temperature		0 - 40ºC
Output signal		90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard Options		C-500 / C-700 CM-5B

Options		Extension cables of 2, 3, 5, and 10 meters are available
(*1) Lever moves linearly, unlike the arc movement in a lever type dial indicator.
(*2) Largest deviation value if narrow range for every 0.5mm step.
