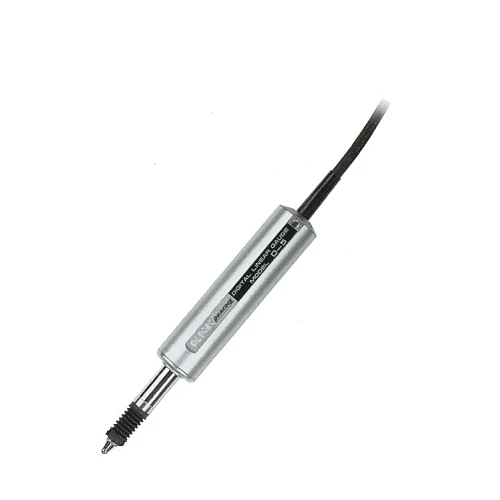

Peacock Linear Gauges ; Measurement range ( 0 - 5mm ),D-5S Pencil Type

  • VendorPEACOCK

Description

Peacock Linear Gauges ; Measurement range ( 0 - 5mm ),D-5S Pencil Type

Pencil Type D-5S
Resolution 0.001mm
Range 0～5mm
  • Best suited for confined conditions. (D-5/D-5S)



Specifications
Model D-5S
Range 5mm
Resolution 0.001mm
Accuracy (excluding quantized error) 0.002mm
Measuring force Less than 0.5N
Mounting method ø 8mm stem
Contact point Sø 2.4mm cooper (X-2)
Cord length 2m
Operating temperature 0 - 40ºC
Output signal 90º phase difference, 20µm pitch (R03-PB8M Tajimi connector)
Compatible standard Options C-500 / C-700 CM-5B
Options Extension cables of 2, 3, 5, and 10 meters are available
(*1) Lever moves linearly, unlike the arc movement in a lever type dial indicator.
(*2) Largest deviation value if narrow range for every 0.5mm step.



[PEACOCK] Linear Gauges ; Measurement range ( 0 - 5mm ),D-5 Pencil Type

Product form

Peacock Linear Gauges ; Measurement range ( 0 - 5mm ),D-5S Pencil Type Pencil Type D-5S Resolution 0.001mm Range 0～5mm... Read more

SKU: D-5S

$825.75 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
