Description

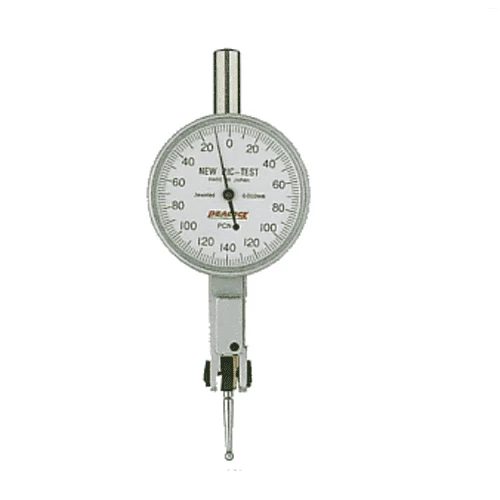

Peacock NEW PIC TEST ; Without change lever, PCN-2
The New Pic Test is a lever type dial indicators used in all over the world.
It is a measuring instrument used for measurements of restricted areas,and the outside/inside, groove width and centering with the dial gauge installed to the lathe or the milling cutting machine for measurements with the gauges held on the height gauges.
- Model PCN-2
- Graduation 0.002mm
- Range 0.28mm
Without change lever (Automatic inverse type)
- The lever type dial gauge of this type has no change lever, the contact point inverses automatically in normal or reverse direction as desired and pointer turns always CW to improve the measuring efficiency.
Miniature Bearing Used
- The miniature bearing used as a bearing at the pivot of the contact point to show good indication stability without any effect by rod play.
O-ring used
- Oil resistance is enhanced by seating the O-ring in the turning sectionof the outer frame.
| Graduation (mm) |
Range (mm) |
Reading |
Accuracy (µm) |
Measuring force less than (N) |
| Wide-range forward accuracy |
Adjacent error |
Backward error |
|
| 0.002 |
0.28 |
0 - 140 - 0 |
3 |
2 |
2 |
0.3 |
| Dimensions |
| Model |
L (mm) |
| PCN-2 |
17.8 |
