Model
|
PFB-RN
|
PFB-RP
|
|

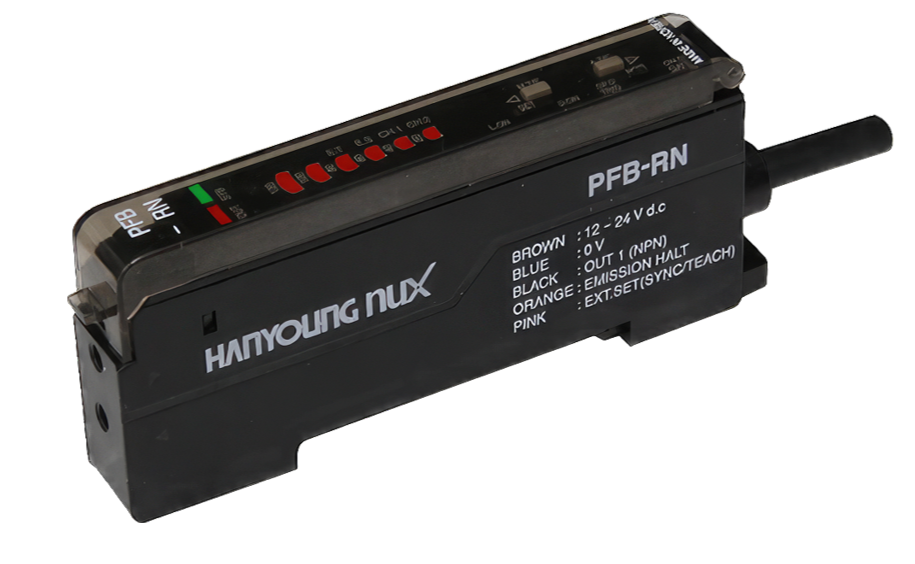

Appearance
|
 |
|
Sensing method
|
Through beam type, reflection type ( By the fiber cable )
|
|
Sensing distance
|
By the fiber sensor
|
|
Power supply voltage
|
12 - 24 V d.c. ±10 % (Ripple less than 10%)
|
|
Current consumption
|
max 20 ㎃
|
|
Control output
|
NPN open collector output, max 100 ㎃ (30 VDC)
|
PNP open collector output, max 100 ㎃ (30 VDC)
|
|
Output action
|
L.ON, D.ON selection
|
|
Time function
|
NORMAL, ON-Delay, OFF-Delay (Delay time 40 ㎳ fixed)
|
|
Responce time
|
max 1 ㎳
|
|
Hysteresis
|
Reflection type : Less than 10% of the sensing distance
|
|
Light source (wave length)
|
Infrared lightening LED (660 ㎚)
|
|
LED
|
Displayed by Bar LED
|
|
Sensitivity adjustment
|
Auto teaching/manual installution by using the set button
|
|
Protective circuit
|
Built in the reversed power supply connection protective circuit and output short protective circuit and motual interference prevention
|
|
Ambient illumination
|
• Sunlight : max 11,000 Lux • Incandescent lamp : max 3,000 Lux
|
|
Ambient temperature
|
-10 ~ 55 ℃(Surrounding storage temperature : -25 ~ 70 ℃)
|
|
Ambient humidity
|
35 ~ 85 % R.H.(With no condensation)
|
|
Protective structure
|
IP 40 (IEC)
|
|
Insulation resistance
|
min 20 ㏁ (500 VDC between the code and case, between the adjustment switch and case)
|
|
Dielectric strength
|
1000 VAC, 50/60 ㎐ for 1 min
|
|
Vibration resistance
|
10 - 55 Hz double amplitude 1.5 ㎜, for 2 hours each in X, Y and Z directions
|
|
Shock resistance
|
500 m/s² 3 times each in X, Y and Z directions
|
|
Connection method
|
• Code extended type,
• Code length : 2 m.
• No.of lines : 5 P,
• thickness : Ø4 ㎜.
• DIN rail installation structure
|
|
Material
|
Case : heat resistance ABS
|
|
Weight
|
Approx. 150g (Included the weight of box and fixing bracket)
|
