Model
|
PL-D2B
|
|

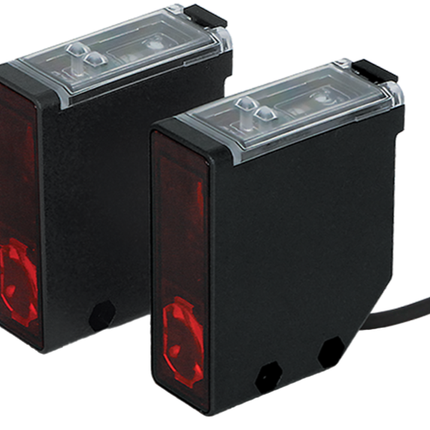

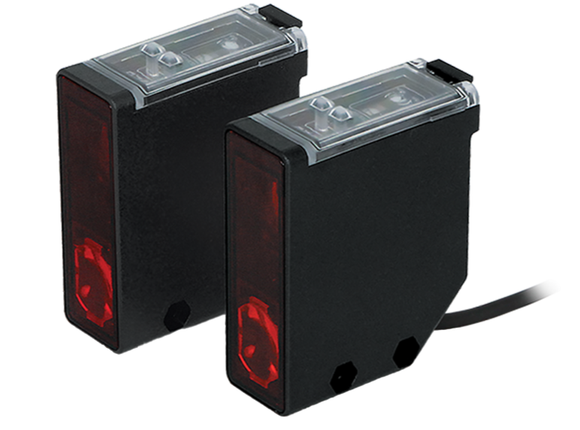

Appearance
|
 |
|
Sensing method
|
Distance - settable
|
|
Sensing distance
|
0.2 ~ 2 m
|
|
Detecting object
|
White non-glossy paper (200x200 ㎜)
|
|
Power voltage
|
12 - 24 V d.c. ±10 %
|
|
Current consumption
|
Max. 30 ㎃
|
|
Control output
|
• NPN / PNP open collector asynchronously
• Load current : max. 150 ㎃ d.c. (resistive load)
• NPN residual voltage : max. 1 V d.c.
• PNP residual voltage : max. 2 V d.c.
|
|
Operation mode
|
Light ON / Dark ON ※ Selectable by the mode V/R
|
|
Response time
|
Max. 2 ㎳.
|
|
Hysteresis
|
Less than 10% of the sensing distance
|
|
Light source (wavelength)
|
Infrared LED (880 nm)
|
|
Receiving part
|
2 Photo diodes
|
|
LED Indicator
|
• Control out display : Red LED • Stability display: Green LED
|
|
Distance setting
|
Near/Far : Optical distance adjusting volume 5 cycles.
|
|
Protection circuit
|
Reverse polarity protection and output short-circuit protection
|
|
Ambient illumination
|
• Sunlight: max. 11000 lx • Incandescent lamp: max. 3000 lx
|
|
Ambient temperature & humidity
|
• Operation : -20 ~ 60 ℃ • Storage : -25 ~ 70 ℃, 35 ~ 85 % RH (without condensation)
|
|
Degree of protection
|
IP65 (IEC 60529)
|
|
Insulation resistance
|
Min. 20 MΩ. (500 V d.c. Mega)
|
|
Dielectric strength
|
1,000 V a.c. (50/60 Hz for 1 min)
|
|
Vibration resistance
|
10 - 55 Hz, double amplitude : 1.5mm for 2 hours each in X. Y and Z directions.
|
|
Shock resistance
|
500 m/s² 3 times each in X. Y and Z directions
|
|
Connection method
|
• Cable output type • Number of wires : 4P • Thickness : Ø 4mm • Length 2m
|
|
Material
|
• Case : PC • Lens : PC
|
|
Accessory
|
Bracket, Adjustable driver, bolt, Nut.
|
|
Approval
|
 |
