Model
|
PN-T3
|
PN-M1
|
PN-R02
|
|

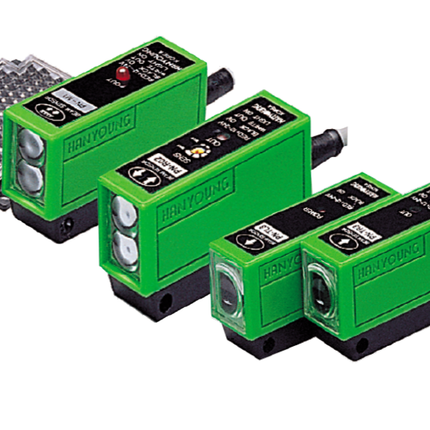

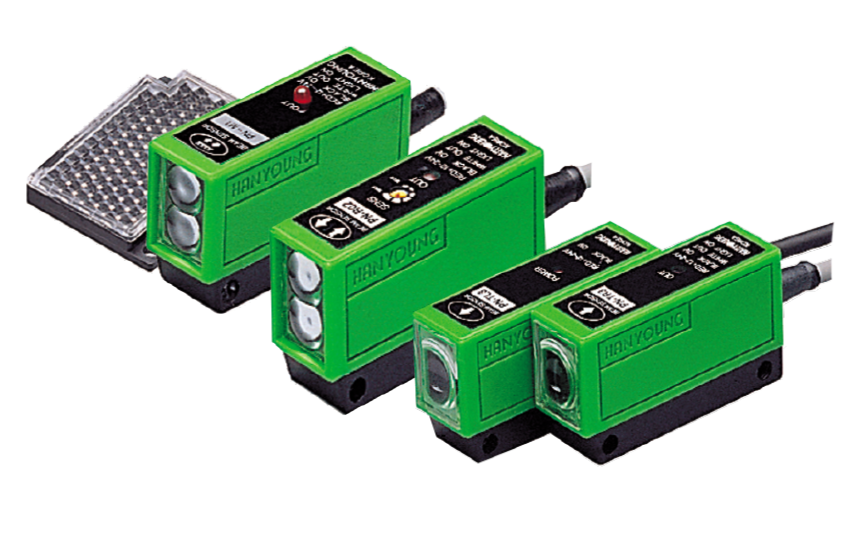

Appearance
|
 |
 |
 |
|
Sensing method
|
Throug beam
|
Retro reflection
|
Diffuse reflection
|
|
Sensing distance
|
3 m
|
0.1-1 m
|
200 ㎜
|
|
Sensing object
|
Opaque object above Ø8 ㎜
|
Opaque object above Ø60 ㎜
|
White paper with no gloss 200 x 200
|
|
Power supply voltage
|
12 - 24 V d.c. (±10 %)
|
|
Current consumption
|
Emitter
|
20 ㎃ d.c.
|
30 ㎃ d.c. max
|
|
Receiver
|
18 ㎃ d.c
|
|
Control output
|
NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max
|
|
Output action
|
Selection of L. ON/D. by the control line (Through beam is only with the receiver)
|
|
Response time
|
3 ㎳ max
|
|
Hysteresis
|
-
|
less than 20% of the sensing distance
|
|
Light source (wave length)
|
Infrared lightening LED (850 ㎚)
|
|
LED
|
Control output indicator : Red LED (But emitter of the through beam indicates the power with red LED)
|
|
Sensitivity adjustment
|
By the sensitivity adjusting volume (Exclude the emitter of through beam type)
|
|
Protective circuit
|
Power reverse connection protecting circuit and output break protecting circuit
|
|
Ambient illumination
|
Sunlight: max 11,000 Lux, incandescent lamp : max 3,000 Lux
|
|
Ambient temperature
|
Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃,(Without condensation)
|
|
Ambient humidity
|
35 ~ 85 % R.H. (With no condensation)
|
|
Insulation resistance
|
20 ㏁ min(500 V d.c.)
|
|
Dielectric strength
|
1,000 V a.c. for 1 min
|
|
Vibration resistance
|
10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction
|
|
Shock resistance
|
500 m/s², 3 times each in X·Y and Z directions
|
|
Connection method
|
Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P)
|
|
Material
|
Case and lens : PC
|
|
Weight
|
Approx. 250g (included the weight of box)
|
Approx. 150g (included the weight of box)
|
Approx. 100g (included the weight of box)
|
