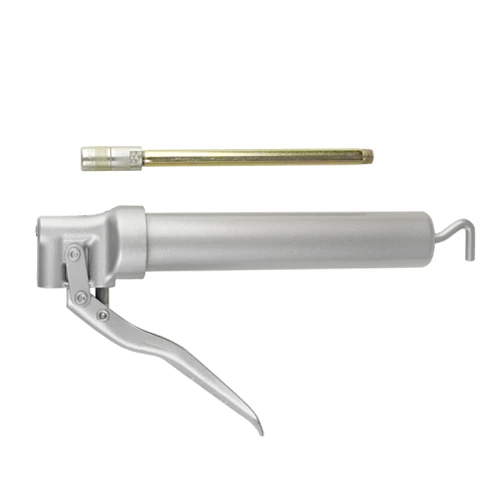

PRESSOL One hand grease gun-EHFP 125 cm³

  • VendorPRESSOL

Description

One hand grease gun-EHFP 125 cm³-G 1/8''-FN-GRDR-MU

Item number: 12 276

Technical data
Grease gun connection, pressure-side G 1/8''
Filling nipple M 10 x 1
Capacity (cm³) 125
Refilling options grease gun filling system or bulk grease
Diameter of grease piston (mm) 8
Grease pump piston actuation manual, by means of pressure grip
Delivery rate/stroke (cm³) 0,4
Discharge pressure up to (bar) 550
Burst pressure system (bar) 850
Burst pressure grease gun head (bar) 1200
Operation of push rod with L-design handle
Cover loose
Wall thickness of grease gun tube (mm) 1,0
Lacquering silver
Dimensions LxWxH (mm) 275 x 145 x 55
Weight (kg) 0,53



Specification

  • Filling nipple (FN), M 10 x 1 male (12 670)
  • Spout, straight, G 1/8'' a, 150 mm (12 475)
  • Coupler, 4 jaws, G 1/8'' (12 731)
  • Sales package, with Bar code

Special notes

  • Operates with greases up to NLGI grade 2 at 20°C
  • Contoured plunger, tight fitting, with bulk grease
  • Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
  • Performance unchanged after 40.000 actuating cycles
  • Grease gun head, zinc die casting Z 410
  • Safe handle on the push rod
  • Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease
  • High-speed ventilation, by half a rotation of the grease gun tube

Packaging
Dimensions LxWxH (mm) 285 x 120 x 55
Weight including package (kg) 0,65
Packing unit 1
Product form

One hand grease gun-EHFP 125 cm³-G 1/8''-FN-GRDR-MU Item number: 12 276 Technical data Grease gun connection, pressure-side G 1/8'' Filling nipple... Read more

SKU: 236-0119
Barcode: 4103810122767

$39.52 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      One hand grease gun-EHFP 125 cm³-G 1/8''-FN-GRDR-MU

      Item number: 12 276

      Technical data
      Grease gun connection, pressure-side G 1/8''
      Filling nipple M 10 x 1
      Capacity (cm³) 125
      Refilling options grease gun filling system or bulk grease
      Diameter of grease piston (mm) 8
      Grease pump piston actuation manual, by means of pressure grip
      Delivery rate/stroke (cm³) 0,4
      Discharge pressure up to (bar) 550
      Burst pressure system (bar) 850
      Burst pressure grease gun head (bar) 1200
      Operation of push rod with L-design handle
      Cover loose
      Wall thickness of grease gun tube (mm) 1,0
      Lacquering silver
      Dimensions LxWxH (mm) 275 x 145 x 55
      Weight (kg) 0,53



      Specification

      • Filling nipple (FN), M 10 x 1 male (12 670)
      • Spout, straight, G 1/8'' a, 150 mm (12 475)
      • Coupler, 4 jaws, G 1/8'' (12 731)
      • Sales package, with Bar code

      Special notes

      • Operates with greases up to NLGI grade 2 at 20°C
      • Contoured plunger, tight fitting, with bulk grease
      • Pump piston with high accuracy of fit to the cylinder (no dummy apparent lubrication)
      • Performance unchanged after 40.000 actuating cycles
      • Grease gun head, zinc die casting Z 410
      • Safe handle on the push rod
      • Plunger rod clamp on end cap enables manual pressure to be applied to spring to compress bulk grease
      • High-speed ventilation, by half a rotation of the grease gun tube

      Packaging
      Dimensions LxWxH (mm) 285 x 120 x 55
      Weight including package (kg) 0,65
      Packing unit 1
