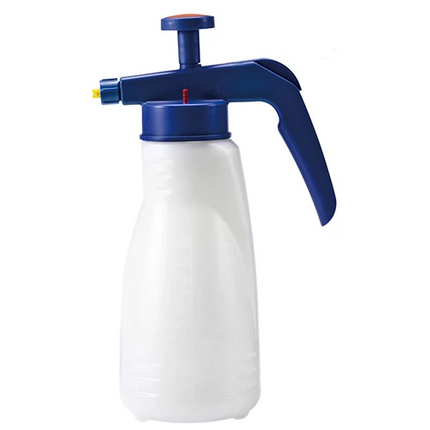

PRESSOL SPRAYFIxx-acid basic-1ℓ Flat jet nozzle

  • VendorPRESSOL

Description

SPRAYFIxx-acid basic-1ℓ  Flat jet nozzle

Item number: 06 913 001

Technical data

Container volume max. (ml) 1000
Filling volume max (ml) 800
Colour of container white, transparent
Temperature range (°C) +5 / + 30
Operating pressure max. (bar) 2,5
Height (mm) 290
Base LxB (mm) 230 x 110
Weight (kg) 0,42
Nozzle flat spray nozzle, 110° ABS (80 682)
Spray pattern flat spray angle 110° at 2,5 bar
Spraying quantity (ml/min) 450
Spraying distance (m) 1,7
Colour code red
Materials
Container HDPE (high density polyethylene)
Seals Viton® (FKM)
Pump head special plastic
Valve rod + springs stainless steel / stainless steel
Nozzle PP

 Specification

  • HDPE container with scale in ml
  • According to application, spray pattern and slewability, the following nozzles are available: adjusting and swivelling nozzle, brass (80 680) + flat spray nozzle 110° PA (80 682), refer to SPRAYFIxx Solvent (80 687) nozzle kit
  • Seals Viton® FKM
  • Manual pressure build-up with combined overpressure and venting valve
  • With EAN bar code

                          Special notes

                          • Suitable for diluted acids (pH value 1-7), as long as the material of the sprayer is resistant to these media
                          • Colour coding at container and pump head, red
                          • Different nozzles allow for application-specific use
                          • UV-resistant



                                      Product form

                                      SPRAYFIxx-acid basic-1ℓ  Flat jet nozzle Item number: 06 913 001 Technical data Container volume max. (ml) 1000 Filling volume max... Read more

                                      SKU: 236-0401
                                      Barcode: 4103810705311

                                      $59.21 Excl. VAT

                                        • Quick delivery worldwide
                                        • Satisfied or refunded
                                        • Secure payments Paypal

                                          Description

                                          SPRAYFIxx-acid basic-1ℓ  Flat jet nozzle

                                          Item number: 06 913 001

                                          Technical data

                                          Container volume max. (ml) 1000
                                          Filling volume max (ml) 800
                                          Colour of container white, transparent
                                          Temperature range (°C) +5 / + 30
                                          Operating pressure max. (bar) 2,5
                                          Height (mm) 290
                                          Base LxB (mm) 230 x 110
                                          Weight (kg) 0,42
                                          Nozzle flat spray nozzle, 110° ABS (80 682)
                                          Spray pattern flat spray angle 110° at 2,5 bar
                                          Spraying quantity (ml/min) 450
                                          Spraying distance (m) 1,7
                                          Colour code red
                                          Materials
                                          Container HDPE (high density polyethylene)
                                          Seals Viton® (FKM)
                                          Pump head special plastic
                                          Valve rod + springs stainless steel / stainless steel
                                          Nozzle PP

                                           Specification

                                          • HDPE container with scale in ml
                                          • According to application, spray pattern and slewability, the following nozzles are available: adjusting and swivelling nozzle, brass (80 680) + flat spray nozzle 110° PA (80 682), refer to SPRAYFIxx Solvent (80 687) nozzle kit
                                          • Seals Viton® FKM
                                          • Manual pressure build-up with combined overpressure and venting valve
                                          • With EAN bar code

                                                                  Special notes

                                                                  • Suitable for diluted acids (pH value 1-7), as long as the material of the sprayer is resistant to these media
                                                                  • Colour coding at container and pump head, red
                                                                  • Different nozzles allow for application-specific use
                                                                  • UV-resistant
