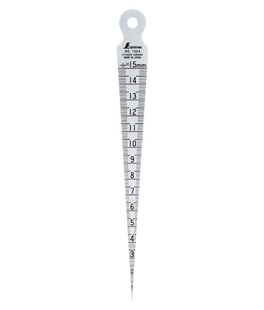

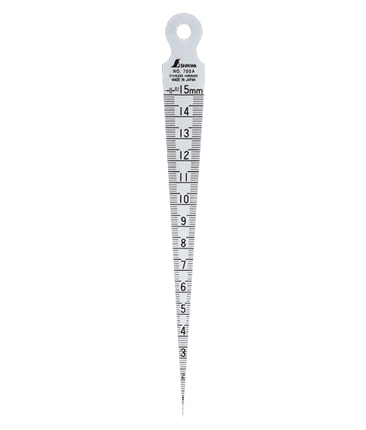

Shinwa Taper gauge No. 700A 1 to 15 mm

Description

Shinwa Taper gauge No. 700A 1 to 15 mm

Features

● Convenient for measuring inner diameter and gap dimensions.

● When measuring circular holes, there will be an error due to the thickness of the gauge body. An inner diameter correction table that is convenient for accurate measurement is attached to the back of the main unit.

specification

● Body size 148 x 17 x 1.2 mm

● Measurement range 1 to 15 mm

● Product mass 11g

● Thickness 1.2mm

● Accuracy ± 0.05mm

● Material: Stainless steel

● Hardness: Hv400 or higher


Product form

Shinwa Taper gauge No. 700A 1 to 15 mm Features ● Convenient for measuring inner diameter and gap dimensions. ●... Read more

SKU: 413-0619
Barcode: 4960910626003

$10.49 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: Jan 18, 2025 17:00:00 +0900

    Description

    Shinwa Taper gauge No. 700A 1 to 15 mm

    Features

    ● Convenient for measuring inner diameter and gap dimensions.

    ● When measuring circular holes, there will be an error due to the thickness of the gauge body. An inner diameter correction table that is convenient for accurate measurement is attached to the back of the main unit.

    specification

    ● Body size 148 x 17 x 1.2 mm

    ● Measurement range 1 to 15 mm

    ● Product mass 11g

    ● Thickness 1.2mm

    ● Accuracy ± 0.05mm

    ● Material: Stainless steel

    ● Hardness: Hv400 or higher
