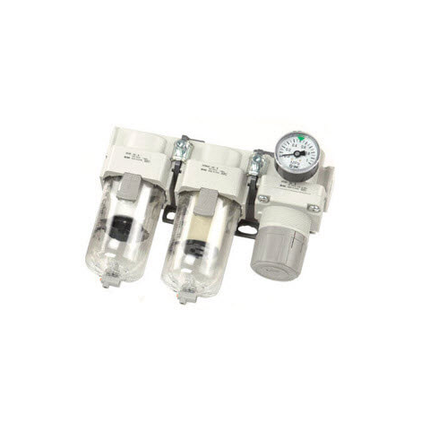

OVERVIEW SMC'S new AC-A series of modular type F.R.L. unit is available in five sizes and is interchangeable with the... Read more

SKU: AC40C-04-A

$150.65 Excl. VAT

Reviews

0 out of 5 stars

This product has no reviews yet

?€				Symbol	Description	1
						Body size
						20	25	30	40
2			Pipe thread type	Nil	Rc	O	O	O	O
				N	NPT	O	O	O	O
				F	G	O	O	O	O
3			Port size	1	1/8	O	-	-	-
				2	1/4	O	O	O	O
				3	3/8	-	O	O	O
				4	1/2	-	-	-	O
				6	3/4	-	-	-	O
4	Option	a	Float type auto drain	Nil	Without auto drain	O	O	O	O
				C	N.C. (Normally closed) Drain port is closed when pressure is not applied.	O	O	O	O
				D	N.O. (Normally open) Drain port is open when pressure is not applied.	-	O	O	O
		b	Pressure gauge	Nil	Without pressure gauge	O	O	O	O
				G	Round type pressure gauge (with limit indicator)	O	O	O	O
				M	Round type pressure gauge (with color zone)	O	O	O	O
5	Attachment	c	Pressure switch	Nil	Without attachment	O	O	O	O
			Pressure switch	S Note 5)	Mounting position: AF+AFM+S+AR	O	O	O	O
			T-spacer	T Note 5)	Mounting position: AF+AFM+T+AR	O	O	O	O
		d	?€	Nil	Without attachment	O	O	O	O
			Pressure relief 3 port valve	V	Mounting position: AF+AFM+AR+V	O	O	O	O
			?€	V1 Note 6)	Mounting position: V+AF+AFM+AR	O	O	O	O
6	Semi- standard	e	Set pressure *9	Nil	0.05 to 0.85 MPa setting	O	O	O	O
		e	Set pressure *9	1	0.02 to 0.2 MPa setting	O	O	O	O
		f	Bowl *10	Nil	Polycarbonate bowl	O	O	O	O
				2	Metal bowl	O	O	O	O
				6	Nylon bowl	O	O	O	O
				8	Metal bowl with level gauge	-	O	O	O
				C	With bowl guard	O	-	-	-
				6C	With bowl guard (Nylon bowl)	O	-	-	-
		g	Filter Mist separator drain port	Nil	With drain cock	O	O	O	O
				J Note 8)	Drain guide 1/8	O	-	-	-
				J Note 8)	Drain guide 1/4	-	O	O	O
				W Note 11)	Drain cock with barb fitting (for ø6 x ø4 nylon tube)	-	O	O	O
		h	Exhaust mechanism	Nil	Relieving type	O	O	O	O
		h	Exhaust mechanism	N	Non-relieving type	O	O	O	O
		i	Flow direction	Nil	Flow direction: Left to right	O	O	O	O
		i	Flow direction	R	Flow direction: Right to left	O	O	O	O
		j	Pressure unit	Nil	Name plate and pressure gauge in imperial units: MPa	O	O	O	O

?€				Symbol	Description	1
						Body size
						20	25	30	40
2			Pipe thread type	Nil	Rc	O	O	O	O
				N	NPT	O	O	O	O
				F	G	O	O	O	O
3			Port size	1	1/8	O	-	-	-
				2	1/4	O	O	O	O
				3	3/8	-	O	O	O
				4	1/2	-	-	-	O
				6	3/4	-	-	-	O
4	Option	a	Float type auto drain	Nil	Without auto drain	O	O	O	O
				C	N.C. (Normally closed) Drain port is closed when pressure is not applied.	O	O	O	O
				D	N.O. (Normally open) Drain port is open when pressure is not applied.	-	O	O	O
		b	Pressure gauge	Nil	Without pressure gauge	O	O	O	O
				G	Round type pressure gauge (with limit indicator)	O	O	O	O
				M	Round type pressure gauge (with color zone)	O	O	O	O
5	Attachment	c	Pressure switch	Nil	Without attachment	O	O	O	O
			Pressure switch	S Note 5)	Mounting position: AF+AFM+S+AR	O	O	O	O
			T-spacer	T Note 5)	Mounting position: AF+AFM+T+AR	O	O	O	O
		d	?€	Nil	Without attachment	O	O	O	O
			Pressure relief 3 port valve	V	Mounting position: AF+AFM+AR+V	O	O	O	O
			?€	V1 Note 6)	Mounting position: V+AF+AFM+AR	O	O	O	O
6	Semi- standard	e	Set pressure *9	Nil	0.05 to 0.85 MPa setting	O	O	O	O
		e	Set pressure *9	1	0.02 to 0.2 MPa setting	O	O	O	O
		f	Bowl *10	Nil	Polycarbonate bowl	O	O	O	O
				2	Metal bowl	O	O	O	O
				6	Nylon bowl	O	O	O	O
				8	Metal bowl with level gauge	-	O	O	O
				C	With bowl guard	O	-	-	-
				6C	With bowl guard (Nylon bowl)	O	-	-	-
		g	Filter Mist separator drain port	Nil	With drain cock	O	O	O	O
				J Note 8)	Drain guide 1/8	O	-	-	-
				J Note 8)	Drain guide 1/4	-	O	O	O
				W Note 11)	Drain cock with barb fitting (for ø6 x ø4 nylon tube)	-	O	O	O
		h	Exhaust mechanism	Nil	Relieving type	O	O	O	O
		h	Exhaust mechanism	N	Non-relieving type	O	O	O	O
		i	Flow direction	Nil	Flow direction: Left to right	O	O	O	O
		i	Flow direction	R	Flow direction: Right to left	O	O	O	O
		j	Pressure unit	Nil	Name plate and pressure gauge in imperial units: MPa	O	O	O	O
