Description

OVERVIEW

Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
installation support	B	Basic type
tube inner diameter	50	tube inner diameter 50mm
cylinder stroke	200	cylinder stroke 200mm
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6... Read more

SKU: C96SB50-200C

$106.42 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Need a bulk or multi-brand quotation?

Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
Korean brands at ProSource MRO — operated by the same team.

Request a Bulk Quote →

Description

OVERVIEW

Series C96 cylinders conform to ISO 15552. The series is available with a single or double rod in 6 bore sizes from °32 to °125mm. High accuracy covers and tie rod nuts improve mounting accuracy and extend the cylinder life. Increasing the precision of the bushing and piston rod, as well as reducing tolerances, has decreased the deflection of the piston rod. Standard strokes range from 25 to 800mm.

Light weight: reduced by up to 17%
Reduction of tact time by new cushion method (air cushion + damper cushion)
Reduced metal noise when piston is stopped by damper cushion

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
installation support	B	Basic type
tube inner diameter	50	tube inner diameter 50mm
cylinder stroke	200	cylinder stroke 200mm
with bellows	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With bellows 2	-	no bellows
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

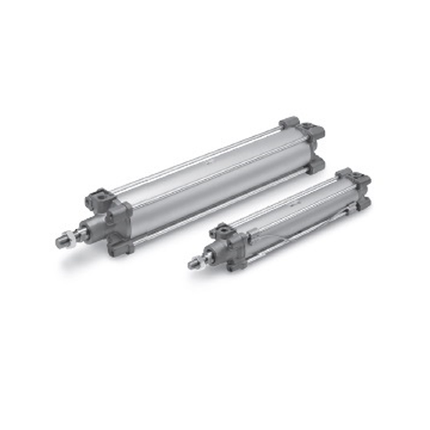

Name: SMC C96 Series ISO air cylinder, double acting, single rod, C96SB50-200C
