Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rubber cushion: Rc; Air cushion: M5X0.8/Rc
cylinder stroke	75	Cylinder stroke 75mm
Rod end screw shape	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
Cylinder additional symbol	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Set trunnion mounting tab-less shape to... Read more

SKU: CDG1ZN20-75Z

$30.29 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Set trunnion mounting tab-less shape to basic type
Set rod end bracket and swing bracket attached part number (reduces the trouble of ordering separately)
Auto With switch (CDG1-Z series: CDG1, CDG1W, CDG1K, CDG1KW, CDG1R)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	Z	Basic type (without female thread for trunnion installation)
form	N	rubber cushion
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rubber cushion: Rc; Air cushion: M5X0.8/Rc
cylinder stroke	75	Cylinder stroke 75mm
Rod end screw shape	-	rod end male thread
Stroke adjustment symbol	-	doesn't exist
Cylinder additional symbol	-	no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

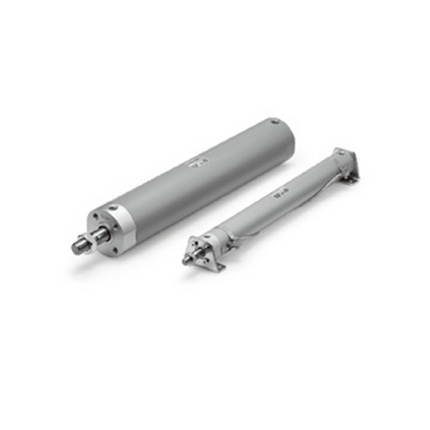

Name: SMC CG1-Z Series Air Cylinder, Round Body, Double Acting, Single Rod, CDG1ZN20-75Z
