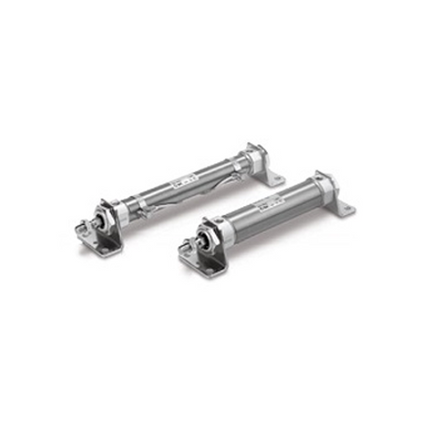

SMC CM2K-Z Series Air Cylinder, round body, Non-Rot, Single Acting, CDM2KB20-50TZ

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, swing support bracket for trunnion set
  • Rod end bracket, swing bracket attachment part number set (reduces the trouble of ordering separately) )
  • With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
Mounting support type B Basic type (with bosses on both sides)
tube inner diameter 20 tube inner diameter 20mm
cylinder stroke 50 cylinder stroke 50mm
how it works T single acting retract
Rod end screw shape - rod end male thread
rocking support bracket - no metal fittings
rod end bracket - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, swing support bracket for... Read more

SKU: CDM2KB20-50TZ

$41.65 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    • Standardized rod end shape female thread
    • Improved auto switch operability, easy position adjustment
    • Single clevis, swing support bracket for trunnion set
    • Rod end bracket, swing bracket attachment part number set (reduces the trouble of ordering separately) )
    • With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    Mounting support type B Basic type (with bosses on both sides)
    tube inner diameter 20 tube inner diameter 20mm
    cylinder stroke 50 cylinder stroke 50mm
    how it works T single acting retract
    Rod end screw shape - rod end male thread
    rocking support bracket - no metal fittings
    rod end bracket - no metal fittings
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
