Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	75	Cylinder stroke 75mm
Cylinder additional symbol	A	Air cushion, rod end male thread, no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rubber cushion, rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2KB20-75AZ

$58.32 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Standardized rod end shape female thread
Improved auto switch operability, easy position adjustment
Single clevis, set rocking support bracket for trunnion
Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
Mounting support type	B	Basic type (with bosses on both sides)
tube inner diameter	20	tube inner diameter 20mm
cylinder stroke	75	Cylinder stroke 75mm
Cylinder additional symbol	A	Air cushion, rod end male thread, no bellows
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	Rubber cushion, rod end male thread, no bellows
rocking support bracket	-	no metal fittings
rod end bracket	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

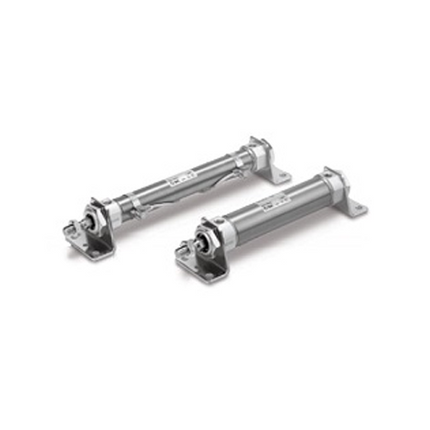

Name: SMC CM2K-Z Series Air Cylinder, round body, Non-rotating, Double Acting, Single Rod, CDM2KB20-75AZ
Brand: SMC
SKU: CDM2KB20-75AZ
Price: 58.32 USD
Availability: InStock

SMC CM2K-Z Series Air Cylinder, round body, Non-rotating, Double Acting, Single Rod, CDM2KB20-75AZ
