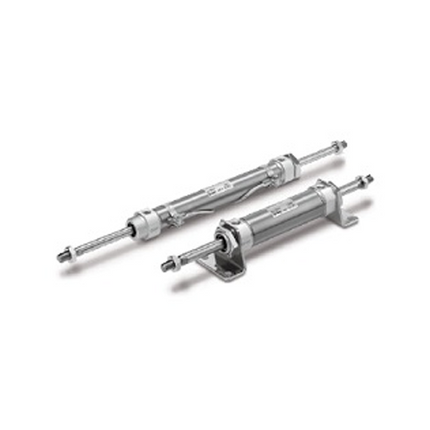

SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB20-50AZ

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, set rocking support bracket for trunnion
  • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
  •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
form - pneumatic type
Mounting support type B Basic type (with bosses on both sides)
tube inner diameter 20 tube inner diameter 20mm
Types of port screws - Rc
cylinder stroke 50 cylinder stroke 50mm
cushion A air cushion
Rod end screw shape - rod end male thread
with bellows - doesn't exist
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2WB20-50AZ

$78.44 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      • Standardized rod end shape female thread
      • Improved auto switch operability, easy position adjustment
      • Single clevis, set rocking support bracket for trunnion
      • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
      •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



      Specification item model symbol Specification information
      With auto switch D With auto switch
      form - pneumatic type
      Mounting support type B Basic type (with bosses on both sides)
      tube inner diameter 20 tube inner diameter 20mm
      Types of port screws - Rc
      cylinder stroke 50 cylinder stroke 50mm
      cushion A air cushion
      Rod end screw shape - rod end male thread
      with bellows - doesn't exist
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
