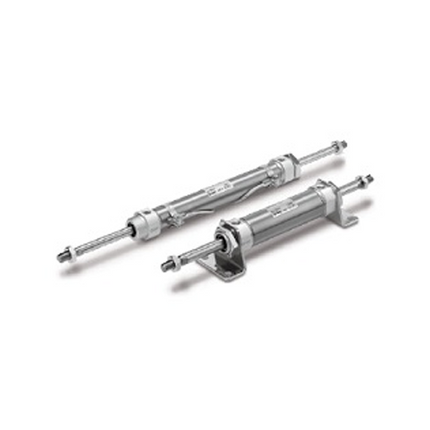

SMC CM2W-Z Series Air Cylinder, round body, Double Acting, Double Rod, CDM2WB25-75Z

Description

OVERVIEW


  • Standardized rod end shape female thread
  • Improved auto switch operability, easy position adjustment
  • Single clevis, set rocking support bracket for trunnion
  • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
  •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



Specification item model symbol Specification information
With auto switch D With auto switch
form - pneumatic type
Mounting support type B Basic type (with bosses on both sides)
tube inner diameter 25 tube inner diameter 25mm
Types of port screws - Rc
cylinder stroke 75 Cylinder stroke 75mm
cushion - rubber cushion
Rod end screw shape - rod end male thread
with bellows - doesn't exist
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Standardized rod end shape female thread Improved auto switch operability, easy position adjustment Single clevis, set rocking support bracket... Read more

SKU: CDM2WB25-75Z

$70.70 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal
    • Shipped today? Order within: May 08, 2024 17:00:00 +0900

    Description

    OVERVIEW


    • Standardized rod end shape female thread
    • Improved auto switch operability, easy position adjustment
    • Single clevis, set rocking support bracket for trunnion
    • Set rod end bracket, swing bracket attached part number (reduces the trouble of ordering separately) )
    •  With auto switch (CDM2-Z series: CDM2, CDM2W, CDM2K, CDM2KW, CDM2R, CDM2RK)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    form - pneumatic type
    Mounting support type B Basic type (with bosses on both sides)
    tube inner diameter 25 tube inner diameter 25mm
    Types of port screws - Rc
    cylinder stroke 75 Cylinder stroke 75mm
    cushion - rubber cushion
    Rod end screw shape - rod end male thread
    with bellows - doesn't exist
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
