Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	5	cylinder stroke 5mm
body options	-	standard
body option 2	-	Standard (rod end female thread)
Auto switch mounting groove	Z	4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW A space-saving cylinder designed with a thin overall length to realize compact equipment Small auto switches can be attached... Read more

SKU: CQ2BS32-5DCZ

$36.85 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

A space-saving cylinder designed with a thin overall length to realize compact equipment
Small auto switches can be attached to 4 surfaces (2 surfaces for ø12 to ø25).
There is no protruding auto switch.
Light weight: reduced by 5~13% (compared to the previous CQ2)
Newly added support bracket for double clevis and compact foot type bracket
Enclosed installation bolt and set the part number for rod end bracket attachment (reducing the trouble of ordering separately)
With auto switch (CDQ2 series: CDQ2, CDQ2W, CDQ2K, CDQ2KW, CDQP2, CDQ2 S, CDBQ2)

Specification item	model symbol	Specification information
built-in magnet	-	No built-in magnet
installation support	B	Through hole (standard)
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	5	cylinder stroke 5mm
body options	-	standard
body option 2	-	Standard (rod end female thread)
Auto switch mounting groove	Z	4 sides
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

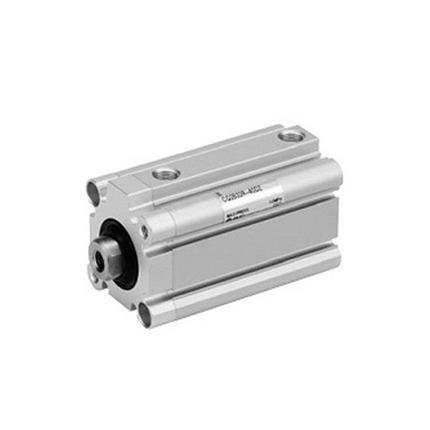

Name: SMC CQ2-Z Series Lateral Load Resistant Thin Type Cylinder, CQ2BS32-5DCZ
Brand: SMC
SKU: CQ2BS32-5DCZ
Price: 36.85 USD
Availability: InStock

SMC CQ2-Z Series Lateral Load Resistant Thin Type Cylinder, CQ2BS32-5DCZ

0 out of 5 stars

This product has no reviews yet
