Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without

Product form

OVERVIEW Built-in guide rod in thin cylinder CQS, CQ2 series Anti-rotation accuracy ±0.2° or less Lateral load resistance 2 to... Read more

SKU: CDQMB20-20-M9NL

$149.03 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Built-in guide rod in thin cylinder CQS, CQ2 series
Anti-rotation accuracy ±0.2° or less
Lateral load resistance 2 to 4 times ※Comparison with thin cylinder CQ series
Direct mounting of load is possible
Mounting dimensions for CQS, CQ2 series Compatible with
With auto switch (CDQM series: CDQM)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Through hole (standard)
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M screw, Rc
cylinder stroke	20	cylinder stroke 20mm
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without

Reviews

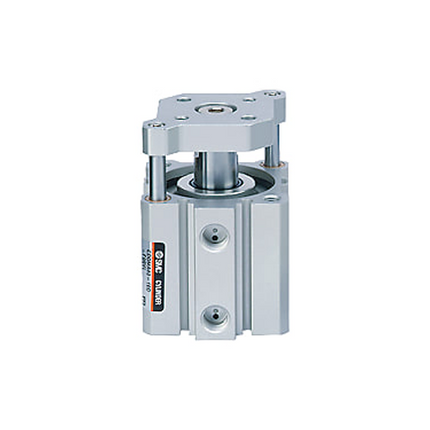

Name: SMC CQM Series Compact Guide Rod Cylinder, CDQMB20-20-M9NL
Brand: SMC
SKU: CDQMB20-20-M9NL
Price: 149.03 USD
Availability: InStock

SMC CQM Series Compact Guide Rod Cylinder, CDQMB20-20-M9NL
