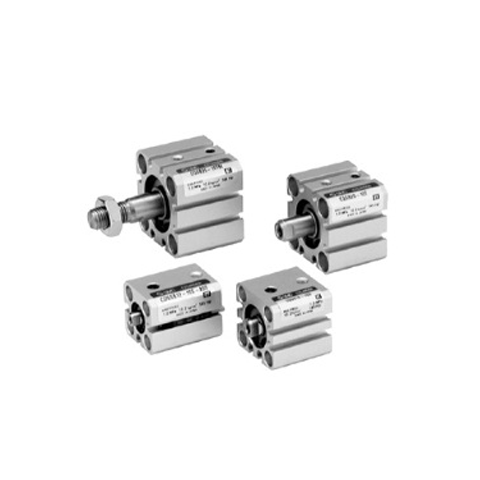

SMC CQS Series, Compact Type Cylinder, non rot, Single Acting, Double Rod, CDQSB16-5T

Description

OVERVIEW


  • Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
  • Compact cylinder that does not protrude from the main body when auto switch is attached.
  • Newly added support bracket for double clevis and compact foot type bracket.
  • With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)



Specification item model symbol Specification information
built-in magnet D built-in magnet
installation support B Through-hole/double-end tap common (standard)
tube inner diameter 16 tube inner diameter 16mm
cylinder stroke 5 cylinder stroke 5mm
how it works T Dandong: backward
option - Standard (rod end female thread)
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides Compact cylinder that... Read more

SKU: CDQSB16-5T

$22.24 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    OVERVIEW


    • Square type with shorter overall length, auto switch can be mounted on 3 or 4 sides
    • Compact cylinder that does not protrude from the main body when auto switch is attached.
    • Newly added support bracket for double clevis and compact foot type bracket.
    • With auto switch (CDQS series: CDQS, CDQSW, CDQSK, CDQSKW, CDQS S)



    Specification item model symbol Specification information
    built-in magnet D built-in magnet
    installation support B Through-hole/double-end tap common (standard)
    tube inner diameter 16 tube inner diameter 16mm
    cylinder stroke 5 cylinder stroke 5mm
    how it works T Dandong: backward
    option - Standard (rod end female thread)
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
