Description

OVERVIEW

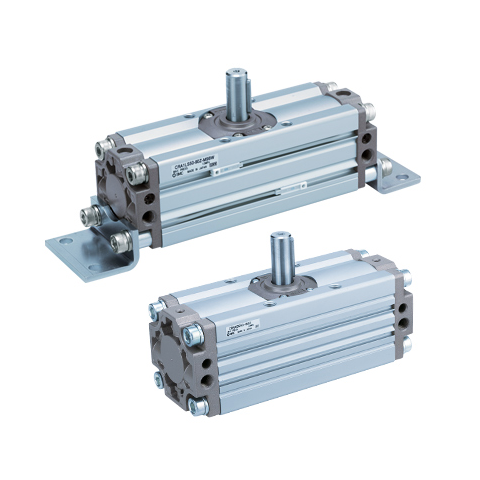

The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions. Dimensions range from 3" X 4" X 2" to a maximum of 8" X 9.65" X 4.41". Single shaft end or double shaft end models are available.

Can be mounted on 2 sides of a small auto switch ( D -M9„ type ) Can be mounted from the front of the auto switch UZ, CDVRA1)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
shaft type	W	sheep
form	-	pneumatic type
size	30	size 30
port type	-	Rc
rocking angle	180	180°
cushion	-	no air cushion
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50,... Read more

SKU: CDRA1BW30-180Z-M9NL

$207.56 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

The CRA1 rack & pinion rotary actuator offers very high torque-to-size and accurate positioning. Bore sizes are 30, 50, 63, 80 and 100mm. Units may be ordered auto-switch capable and with cushions. Dimensions range from 3" X 4" X 2" to a maximum of 8" X 9.65" X 4.41". Single shaft end or double shaft end models are available.

Can be mounted on 2 sides of a small auto switch ( D -M9„ type ) Can be mounted from the front of the auto switch UZ, CDVRA1)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	B	Basic type
shaft type	W	sheep
form	-	pneumatic type
size	30	size 30
port type	-	Rc
rocking angle	180	180°
cushion	-	no air cushion
auto switch	M9NL	Solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

Name: SMC CRA1 Series Rotary Actuator, Rack and Pinion Type, CDRA1BW30-180Z-M9NL
Brand: SMC
SKU: CDRA1BW30-180Z-M9NL
Price: 207.56 USD
Availability: InStock

SMC CRA1 Series Rotary Actuator, Rack and Pinion Type, CDRA1BW30-180Z-M9NL
