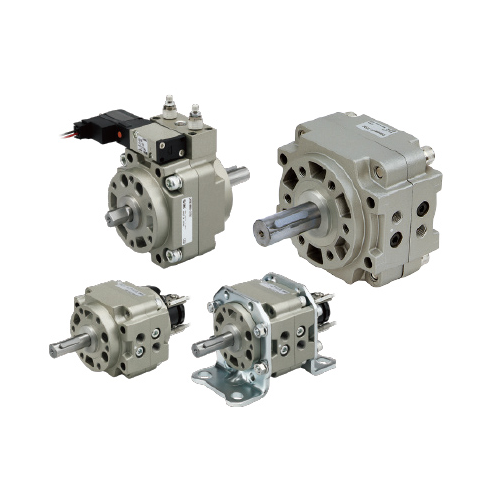

SMC CRB1 Series Rotary Actuator Vane Type, 10-CRB1BW30-180S

Description

OVERVIEW



  • Auto switch mounting position can be moved anywhere
  • Direct installation possible
  • Connection port location: body side, axial direction selectable
  • Low pressure operation: 0.15MPa (size 50 to 100)
  • Auto switch attached (CDRB1 series: CDRB1, CDVRB1)



Configuration Options



1 With auto switch (With auto switch unit and built-in magnet) *  Refer to page 99 when the auto switch unit is needed separately
2 Mounting B Basic type
L Foot Type
3 Shaft type W Double Shaft
4 With angle adjuster unit Refer to page 99 when the angle adjuster unit is needed separately.
5 Size 50,63,80,100
6 Rotating Angle Standard 90,180,270
Semi-Standard 90,100
7 Vane Type S Single vane
D Double vane
8 Auto switch Nil Without auto switch (Built-in magnet)
M Without D-M9 type auto switch (Built-in magnet)
9  Electrical entry/Lead wire length Nil Grommet/Lead wire: 0.5 m
M Grommet/Lead wire: 1 m
L Grommet/Lead wire: 3 m
CN Connector/Without lead wire
C Connector/Lead wire: 0.5 m
CL Connector/Lead wire: 3 m
10 Number of auto switches S 1 pc.*
Nil 2 pcs.**
11 Made to Order
Product form

OVERVIEW Auto switch mounting position can be moved anywhere Direct installation possible Connection port location: body side, axial direction selectable... Read more

SKU: 10-CRB1BW30-180S

$253.56 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • Auto switch mounting position can be moved anywhere
    • Direct installation possible
    • Connection port location: body side, axial direction selectable
    • Low pressure operation: 0.15MPa (size 50 to 100)
    • Auto switch attached (CDRB1 series: CDRB1, CDVRB1)



    Configuration Options



    1 With auto switch (With auto switch unit and built-in magnet) *  Refer to page 99 when the auto switch unit is needed separately
    2 Mounting B Basic type
    L Foot Type
    3 Shaft type W Double Shaft
    4 With angle adjuster unit Refer to page 99 when the angle adjuster unit is needed separately.
    5 Size 50,63,80,100
    6 Rotating Angle Standard 90,180,270
    Semi-Standard 90,100
    7 Vane Type S Single vane
    D Double vane
    8 Auto switch Nil Without auto switch (Built-in magnet)
    M Without D-M9 type auto switch (Built-in magnet)
    9  Electrical entry/Lead wire length Nil Grommet/Lead wire: 0.5 m
    M Grommet/Lead wire: 1 m
    L Grommet/Lead wire: 3 m
    CN Connector/Without lead wire
    C Connector/Lead wire: 0.5 m
    CL Connector/Lead wire: 3 m
    10 Number of auto switches S 1 pc.*
    Nil 2 pcs.**
    11 Made to Order
