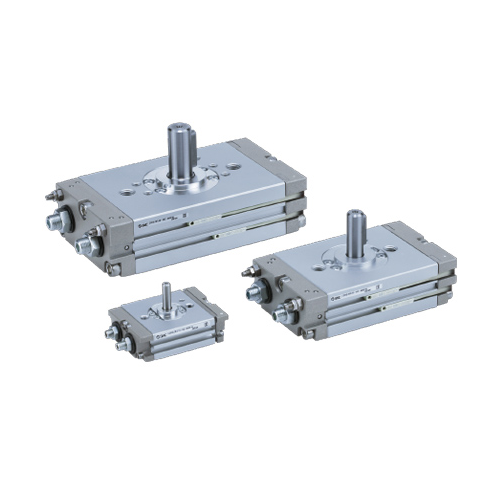

SMC CRQ2 Series Compact Rotary Actuator, Rack and Pinion Type, CDRQ2BS15-90-M9NWL

Description

OVERVIEW



  • With cushion
  • With angle adjusting mechanism
  • Selectable between single shaft and double shaft
  • With auto switch (CDRQ2 series: CDRQ2)



Specification item model symbol Specification information
With auto switch D With auto switch
shaft type S single axis
patterning - standard product
size 15 15
port type - Rc1/8;M5
rocking angle 90 80°~100°
cushion - No cushion, rubber cushion
Shaft/parallel key material - standard type
auto switch M9NWL 2-color display, solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
Auto switch additional symbol - 2 with or without
Custom made specifications - standard




Product form

OVERVIEW With cushion With angle adjusting mechanism Selectable between single shaft and double shaft With auto switch (CDRQ2 series: CDRQ2)... Read more

SKU: CDRQ2BS15-90-M9NWL

$203.79 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    • With cushion
    • With angle adjusting mechanism
    • Selectable between single shaft and double shaft
    • With auto switch (CDRQ2 series: CDRQ2)



    Specification item model symbol Specification information
    With auto switch D With auto switch
    shaft type S single axis
    patterning - standard product
    size 15 15
    port type - Rc1/8;M5
    rocking angle 90 80°~100°
    cushion - No cushion, rubber cushion
    Shaft/parallel key material - standard type
    auto switch M9NWL 2-color display, solid-state auto switch, grommet, with light, 3-wire type (NPN), lateral entry, lead wire 3 m, applied voltage: DC5V, 12V, 24V (DC4.5 to 28V)
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
