Description

OVERVIEW

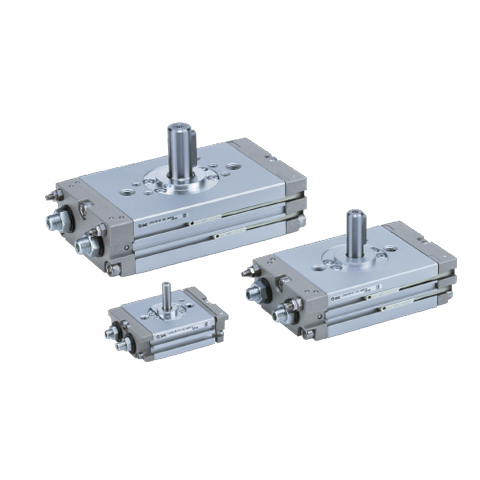

The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes (10~40mm). The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.

With cushion
With angle adjusting mechanism
Selectable between single shaft and double shaft
With auto switch (CDRQ2 series: CDRQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
shaft type	X	single shaft four chamfer
patterning	-	standard product
size	20	20
port type	-	Rc1/8;M5
rocking angle	90	80°~100°
cushion	C	air cushion
Shaft/parallel key material	-	standard type
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available... Read more

SKU: CDRQ2BX20-90C

$255.81 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

The CRQ2 series is a compact rotary, rack and pinion style actuator. Single and double shaft types are available in all sizes (10~40mm). The CRQ2 uses internal cushioning and the body can be used as a flange. The use of a double piston eliminates backlash. Auto switches are available.

With cushion
With angle adjusting mechanism
Selectable between single shaft and double shaft
With auto switch (CDRQ2 series: CDRQ2)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
shaft type	X	single shaft four chamfer
patterning	-	standard product
size	20	20
port type	-	Rc1/8;M5
rocking angle	90	80°~100°
cushion	C	air cushion
Shaft/parallel key material	-	standard type
auto switch	-	Without auto switch Built-in magnet cylinder
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard
