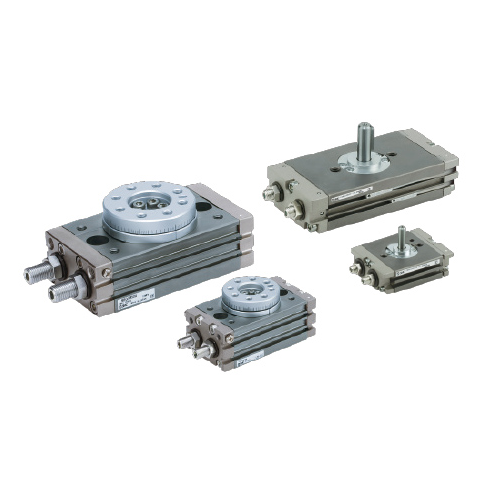

SMC CRQ2 Series Compact Rotary Actuator Rack and Pinion Type, CRQ2BS30-360C

Description

OVERVIEW



  • With cushion
  • With angle adjusting mechanism
  • Selectable between single shaft and double shaft
  • With auto switch (CDRQ2 series: CDRQ2)



Configuration Options




Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length (m) Pre-wired connector Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N * * * * * IC circuit Relay, PLC
3-wire (PNP) M9PV M9P * * * * *
2-wire 12 V M9BV M9B * * * * * -
Diagnostic indication (2-color display) 3-wire (NPN) 5 V, 12 V M9NWV M9NW * * * * * IC circuit
3-wire (PNP) M9PWV M9PW * * * * *
2-wire 12 V M9BWV M9BW * * * * * -
Water resistant (2-color indication) 3-wire (NPN) 5 V, 12 V M9NAV*1 M9NA*1 * * * * * IC circuit
3-wire (PNP) M9PAV*1 M9PA*1 * * * * *
2-wire 12 V M9BAV*1 M9BA*1 * * * * * ??/span>
Reed auto switch - Grommet Yes 3-wire - 5 V - A96V A96 * - * - - IC circuit -
2-wire 24 V 12 V 100 V A93V*2 A93 * * * * - - Relay, PLC
No 100 V or less A90V A90 * - * - - IC circuit



Product form

OVERVIEW   With cushion With angle adjusting mechanism Selectable between single shaft and double shaft With auto switch (CDRQ2 series:... Read more

SKU: CRQ2BS30-360C

$232.87 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
