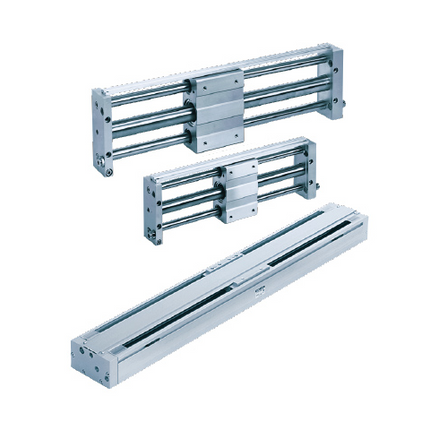

SMC CY1L Series Magnet Type Rodless Cylinder , Slider Type, Ball Bush Bearing, CY1L15H-300

Description

OVERVIEW


With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

  • A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.



Specification item model symbol Specification information
tube inner diameter 15 tube inner diameter 15mm
Types of port screws - Rc
Magnet holding power type H Holding force H type
cylinder stroke 300 Cylinder stroke 300mm
reconciliation format - Attaching the adjustment bolt
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

$305.18 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

    • A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.



    Specification item model symbol Specification information
    tube inner diameter 15 tube inner diameter 15mm
    Types of port screws - Rc
    Magnet holding power type H Holding force H type
    cylinder stroke 300 Cylinder stroke 300mm
    reconciliation format - Attaching the adjustment bolt
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
