Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	Rc
Magnet holding power type	H	Holding force H type
cylinder stroke	200	cylinder stroke 200mm
reconciliation format	B	With shock absorber (with 2 pieces)
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

SKU: CY1L6H-200B

$359.27 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.

Specification item	model symbol	Specification information
tube inner diameter	6	tube inner diameter 6mm
Types of port screws	-	Rc
Magnet holding power type	H	Holding force H type
cylinder stroke	200	cylinder stroke 200mm
reconciliation format	B	With shock absorber (with 2 pieces)
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

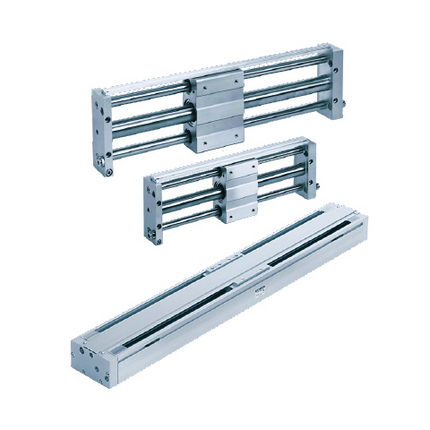

Name: SMC CY1L Series Magnet Type Rodless Cylinder , Slider Type, Ball Bush Bearing, CY1L6H-200B
Brand: SMC
SKU: CY1L6H-200B
Price: 359.27 USD

SMC CY1L Series Magnet Type Rodless Cylinder , Slider Type, Ball Bush Bearing, CY1L6H-200B
