Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
Piping type	-	standard type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
With/without switch rail	-	Attaching the switch rail
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

SKU: CY3R20-100-A93

$305.04 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Nov 25, 2024 17:00:00 +0900

Description

OVERVIEW

With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

Further upgrade of the CY1 series
Same mounting dimensions as the CY1 series Improved bearing performance, reduced sliding resistance
Standardized NPT thread and G thread.

Specification item	model symbol	Specification information
Piping type	-	standard type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
With/without switch rail	-	Attaching the switch rail
auto switch	A93	Reed auto switch, grommet, with light, 2-wire type, lateral entry, lead wire 0.5 m, applied voltage: DC24V, AC100V
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

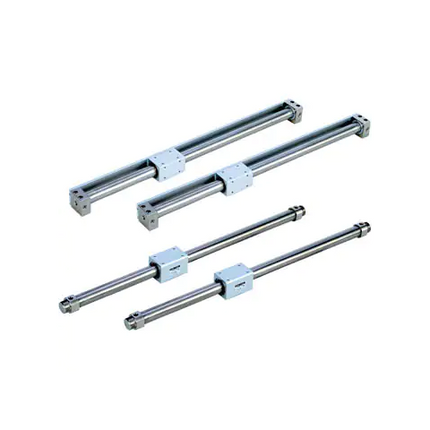

Name: SMC CY3R Series Magnet Type Rodless Cylinder, Direct Mounting Type, CY3R20-100-A93
Brand: SMC
SKU: CY3R20-100-A93
Price: 305.04 USD

SMC CY3R Series Magnet Type Rodless Cylinder, Direct Mounting Type, CY3R20-100-A93

0 out of 5 stars

This product has no reviews yet
