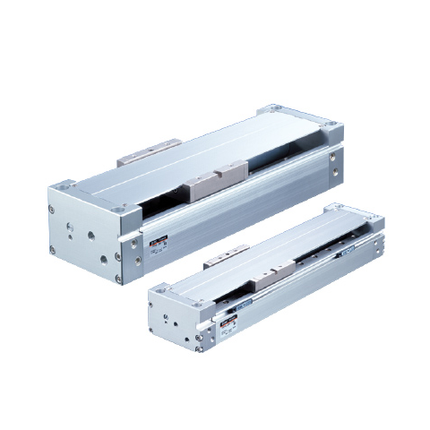

SMC CYP Series Clean Rodless Cylinder, CYP32-350

Description

OVERVIEW


With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

  • A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.



Specification item model symbol Specification information
tube inner diameter 32 Bore size 32mm
Types of port screws - M5X0.8,Rc
stroke 350 stroke 350mm
Piping port location - a Operating direction: Right; b Operating direction: Left
auto switch - Without auto switch Built-in magnet cylinder
Auto switch additional symbol - 2 with or without



Product form

OVERVIEW With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a... Read more

SKU: CYP32-350

$809.52 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW


    With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

    • A space-saving cylinder with a wide range of applications thanks to its magnetic coupling structure.



    Specification item model symbol Specification information
    tube inner diameter 32 Bore size 32mm
    Types of port screws - M5X0.8,Rc
    stroke 350 stroke 350mm
    Piping port location - a Operating direction: Right; b Operating direction: Left
    auto switch - Without auto switch Built-in magnet cylinder
    Auto switch additional symbol - 2 with or without
