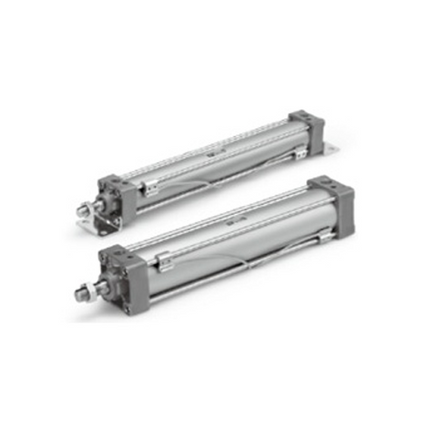

SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MBB100-100Z

Description

OVERVIEW


  •  Maximum weight reduced by 10% by changing the shape of the cover
  • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
  • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



Specification item model symbol Specification information
With auto switch - Without auto switch
installation support B Basic type
tube inner diameter 100 Tube inner diameter 100mm
Types of port screws - Rc
cylinder stroke 100 cylinder stroke 100mm
Cylinder additional symbol - No bellows, air cushion
Stroke adjustment symbol - doesn't exist
dual stroke mark - No dual stroke mark
cylinder stroke 2 - Cylinder stroke 2 None
Cylinder additional symbol 2 - No bellows, air cushion
Attachment 1 - no metal fittings
Accessories 2 - no metal fittings
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard

Product form

OVERVIEW  Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MBB100-100Z

$217.90 Excl. VAT

    • Quick delivery worldwide
    • Satisfied or refunded
    • Secure payments Paypal

      Description

      OVERVIEW


      •  Maximum weight reduced by 10% by changing the shape of the cover
      • Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
      • Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)



      Specification item model symbol Specification information
      With auto switch - Without auto switch
      installation support B Basic type
      tube inner diameter 100 Tube inner diameter 100mm
      Types of port screws - Rc
      cylinder stroke 100 cylinder stroke 100mm
      Cylinder additional symbol - No bellows, air cushion
      Stroke adjustment symbol - doesn't exist
      dual stroke mark - No dual stroke mark
      cylinder stroke 2 - Cylinder stroke 2 None
      Cylinder additional symbol 2 - No bellows, air cushion
      Attachment 1 - no metal fittings
      Accessories 2 - no metal fittings
      auto switch - Without auto switch
      Auto switch additional symbol - 2 with or without
      Custom made specifications - standard
