Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
installation support	B	Basic type
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MBB32-100Z

$102.65 Excl. VAT

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	-	Without auto switch
installation support	B	Basic type
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	100	cylinder stroke 100mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

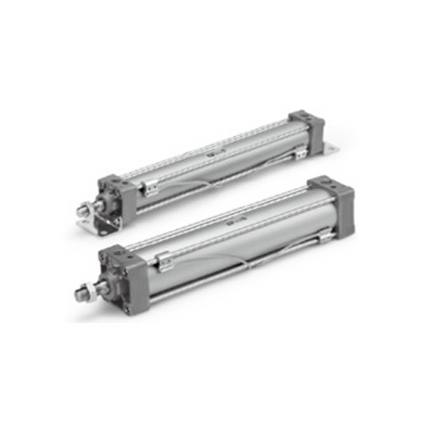

Name: SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MBB32-100Z
Brand: SMC
SKU: MBB32-100Z
Price: 102.65 USD
