Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	T	Axial trunnion type
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	125	Cylinder stroke 125mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW Maximum weight reduced by 10% by changing the shape of the cover Set the rod end bracket and swing... Read more

SKU: MDBT32-125Z

$99.96 Excl. VAT

Ships within 5–10 business days

Ships from South Korea

Export packing available

Worldwide shipping

Secure payments Paypal

Description

OVERVIEW

Maximum weight reduced by 10% by changing the shape of the cover
Set the rod end bracket and swing support bracket attached part number (reducing the trouble of ordering separately)
Attach auto switch (MDB-Z series: MDB, MDBW, MDBK, MDBKW, MDBB, MDBQ)

Specification item	model symbol	Specification information
With auto switch	D	With auto switch
installation support	T	Axial trunnion type
tube inner diameter	32	Bore size 32mm
Types of port screws	-	Rc
cylinder stroke	125	Cylinder stroke 125mm
Cylinder additional symbol	-	No bellows, air cushion
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
Cylinder additional symbol 2	-	No bellows, air cushion
Attachment 1	-	no metal fittings
Accessories 2	-	no metal fittings
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Reviews

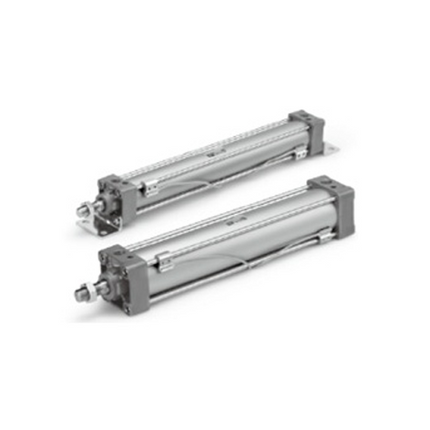

Name: SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MDBT32-125Z
Brand: SMC
SKU: MDBT32-125Z
Price: 99.96 USD
Availability: InStock

SMC MB-Z Series Tie-Rod Cylinder. Double Acting, Single Rod, MDBT32-125Z
