SMC MDHR3 Series, Air Gripper, 3 Finger, Rotary Actuator with Auto Switch, MDHR3-15R-M9BS

Description

OVERVIEW

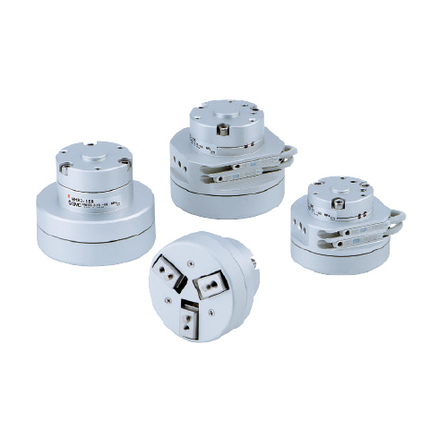

The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide provides smooth actuation for high precision and repeatability making it suitable for end-of-arm (end effector) or pick and place applications.

  • Double acting, rotary actuated
  • Bore sizes: 10, 15 mm
  • High repeatability: ±0.01 mm
  • Mounting: axial, lateral and vertical sides
  • Auto switch capable





Applicable Auto Switches



Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
 connector		 Applicable load
DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
3-wire (PNP) M9PV M9P O O O o o
2-wire 12 V M9BV M9B O O O o o -
Diagnostic indication
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
3-wire (PNP) M9PWV M9PW O O O o o
2-wire 12 V M9BWV M9BW O O O o o -
Water resistant
(2-color indicator)		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
3-wire (PNP) M9PAV** M9PA** o o O o o
2-wire 12 V M9BAV** M9BA** o o O o o -








Product form

OVERVIEW The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide... Read more

SKU: MDHR3-15R-M9BS

$340.93 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal

    Description

    OVERVIEW



    The MDHR3 Series, 3-finger grippers are optimal for gripping spherical, cylindrical or round work pieces. Its cross roller guide provides smooth actuation for high precision and repeatability making it suitable for end-of-arm (end effector) or pick and place applications.

    • Double acting, rotary actuated
    • Bore sizes: 10, 15 mm
    • High repeatability: ±0.01 mm
    • Mounting: axial, lateral and vertical sides
    • Auto switch capable





    Applicable Auto Switches



    Type Special function Electrical entry Indicator light Wiring (Output) Load voltage Auto switch model Lead wire length [m] Pre-wired
     connector    		 Applicable load
    DC AC Perpendicular In-line 0.5 (Nil) 1 (M) 3 (L) 5 (Z)
    Solid state auto switch - Grommet Yes 3-wire (NPN) 24 V 5 V, 12 V - M9NV M9N O O O o o IC Circuit Relay, PLC
    3-wire (PNP) M9PV M9P O O O o o
    2-wire 12 V M9BV M9B O O O o o -
    Diagnostic indication
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NWV M9NW O O O o o IC Circuit
    3-wire (PNP) M9PWV M9PW O O O o o
    2-wire 12 V M9BWV M9BW O O O o o -
    Water resistant
    (2-color indicator)    		 3-wire (NPN) 5 V, 12 V M9NAV** M9NA** o o O o o IC Circuit
    3-wire (PNP) M9PAV** M9PA** o o O o o
    2-wire 12 V M9BAV** M9BA** o o O o o -
