Description

OVERVIEW

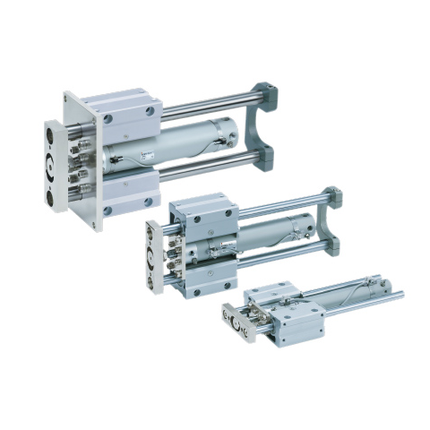

The MGC guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional linear cylinder, and a non-rotation device. Features include standard air cushions, grease nipple, and switch capability. Other features include, slide or ball bushing bearings, compact design, adjustable air cushion, and lightweight guided actuator.

Linear movement unit with compact guide body and front plate
Compact, lightweight, and space-saving compatible

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	M	plain bearing
Mounting support type	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M5X0.8, Rc
cylinder stroke	175
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With or without rear plate	-	no back plate
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard

Product form

OVERVIEW The MGC guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. It combines the functions... Read more

SKU: MGCMB20-175

$249.85 Excl. VAT

Quick delivery worldwide

Satisfied or refunded

Secure payments Paypal

Shipped today? Order within: Jun 18, 2025 17:00:00 +0900

Description

OVERVIEW

The MGC guide cylinder is ideal for material handling applications involving stopping, lifting, and pushing. It combines the functions of a conventional linear cylinder, and a non-rotation device. Features include standard air cushions, grease nipple, and switch capability. Other features include, slide or ball bushing bearings, compact design, adjustable air cushion, and lightweight guided actuator.

Linear movement unit with compact guide body and front plate
Compact, lightweight, and space-saving compatible

Specification item	model symbol	Specification information
form	-	doesn't exist
bearing type	M	plain bearing
Mounting support type	B	Basic type
tube inner diameter	20	tube inner diameter 20mm
Types of port screws	-	M5X0.8, Rc
cylinder stroke	175
Stroke adjustment symbol	-	doesn't exist
dual stroke mark	-	No dual stroke mark
cylinder stroke 2	-	Cylinder stroke 2 None
With or without rear plate	-	no back plate
auto switch	-	Without auto switch
Auto switch additional symbol	-	2 with or without
Custom made specifications	-	standard
