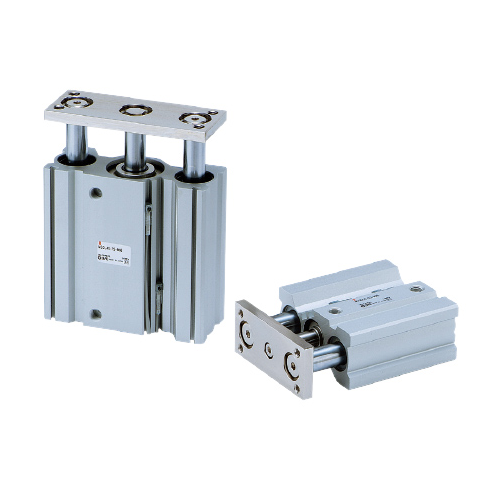

SMC MGQ Series. Compact Guide Cylinder, MGQM50-20

Description

OVERVIEW


The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.

  • Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
  • Suitable for stoppers and lifters in transfer lines



Specification item model symbol Specification information
bearing type M plain bearing
tube inner diameter 50 tube inner diameter 50mm
Types of port screws - M5X0.8(Φ12-16);Rc(Φ20-100)
cylinder stroke 20 cylinder stroke 20mm
auto switch - Without auto switch
Auto switch additional symbol - 2 with or without
Custom made specifications - standard



Product form

OVERVIEW The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a... Read more

SKU: MGQM50-20

$202.95 Excl. VAT

    • Ships within 5–10 business days
    • Ships from South Korea
    • Export packing available
    • Worldwide shipping
    • Secure payments Paypal
    Need a bulk or multi-brand quotation?

    Get quotes for 10+ items across SMC, NSK, LS Electric and 900+
    Korean brands at ProSource MRO — operated by the same team.

    Request a Bulk Quote →

    Description

    OVERVIEW


    The solution for a linear-actuator subject to high loads. Ideal for material handling applications. Two basic models include a self-lubricating slide bushing and a linear ball bearing style. The 100mm slide bushing model can stop a load of 3,000 lbs. traveling at 55ft/min, or smoothly lift a centered load of 1,000 lbs. with a 40% safety factor. The overall package is very compact, and pre-tapped mounting holes ensure easy attachment of fixtures. Mounts on side or bottom. The MGQ offers bore sizes from 12 to 100mm and is switch capable.

    • Guide-integrated air cylinder that realizes lateral load resistance and high-precision anti-rotation
    • Suitable for stoppers and lifters in transfer lines



    Specification item model symbol Specification information
    bearing type M plain bearing
    tube inner diameter 50 tube inner diameter 50mm
    Types of port screws - M5X0.8(Φ12-16);Rc(Φ20-100)
    cylinder stroke 20 cylinder stroke 20mm
    auto switch - Without auto switch
    Auto switch additional symbol - 2 with or without
    Custom made specifications - standard
